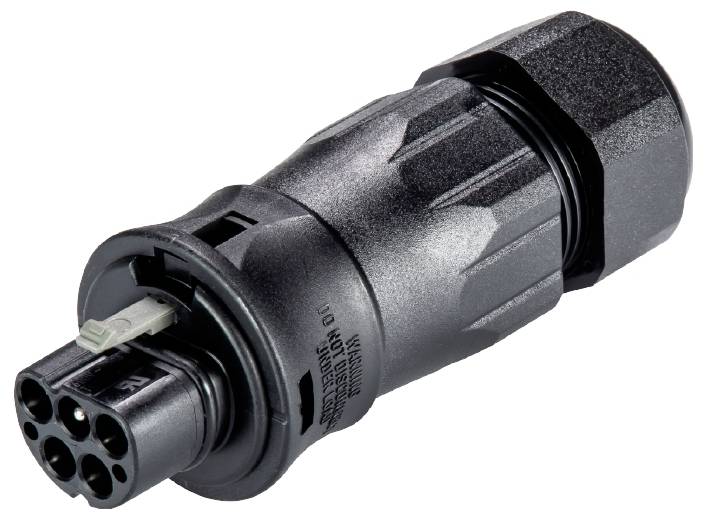

Wieland Electric 96.052.4553.1 Connector
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 14.28
3
5% = € 0.71
€ 13.57
5
7% = € 0.99
€ 13.29
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 14.28 / piece)
€ 14.28
plus VAT.
Technical specifications
- Product type
Connector
- Type A
Plug
- Connector version
straight
- Connection
Screw connection
- Rated voltage
250 V
- Test current
20 A
- Cable Ø (max.)
18 mm
- Cable Ø up to
13 mm
- Cable Ø range
13 - 18 mm
- Number of pins
5
IP66
35.4 mm
Plug
TRUE
35.4 mm
Screw connection
Integrated in plug-in connector
20 A
250 V
TRUE
5
94.6 mm
Polyamide (PA)
13-18 mm
Silver-plated
3
4 kV
CuZn
IP66
1
3, N, PE, 2, 1
Black
0.361 kWh
0.75-4 mm²
0.75-4 mm²
100 °C
9005
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3285759 Wieland Electric 96.052.4553.1 Connector
Description
RST® CLASSIC connectors
straight
Number of pins: 5
Connector
Connection type: screw terminals.
Rated voltage 250 V / 400 V
Rated current 20 A
Cable diameter 13 - 18 mm
Coding color / contact insert black
This text is machine translated.
straight
Number of pins: 5
Connector
Connection type: screw terminals.
Rated voltage 250 V / 400 V
Rated current 20 A
Cable diameter 13 - 18 mm
Coding color / contact insert black
This text is machine translated.
