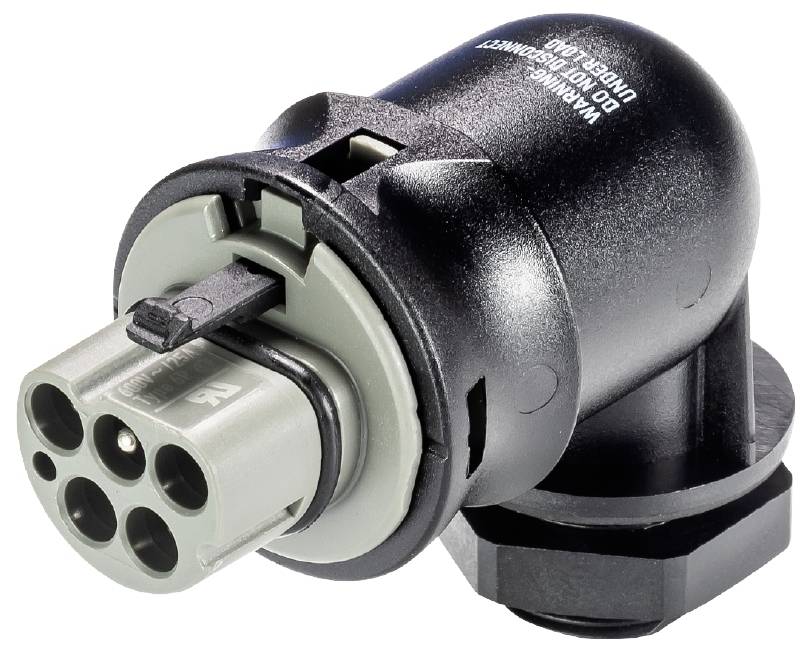

Wieland Electric 96.054.6054.3 Appliance connector
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 12.60
3
5% = € 0.63
€ 11.97
5
7% = € 0.88
€ 11.72
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 12.60 / piece)
€ 12.60
plus VAT.
Technical specifications
- Product type
Appliance connector
- Type A
Plug
- Connector version
90-degree
- Connection
Screw connection
- Rated voltage
250 V
- Test current
25 A
- Number of pins
5
IP66
34.6 mm
Plug
TRUE
54.3 mm
Screw connection
Integrated in plug-in connector
25 A
250 V
5
71.4 mm
Polyamide (PA)
Silver-plated
3
Right-angled
4 kV
0.55 mOhm
CuZn
M20
IP66
1
L, N, PE, 1, 2
Grey
0.236 kWh
Black
0.75-4 mm²
0.75-4 mm²
100 °C
7023
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3285879 Wieland Electric 96.054.6054.3 Appliance connector
Description
RST® CLASSIC device connection
Modular
90° angle
M20
Number of pins: 5
Plug version
Connection type: screw terminals.
Rated voltage 250 V / 400 V
Rated current 25 A
Coding color / contact insert concrete gray
This text is machine translated.
Modular
90° angle
M20
Number of pins: 5
Plug version
Connection type: screw terminals.
Rated voltage 250 V / 400 V
Rated current 25 A
Coding color / contact insert concrete gray
This text is machine translated.
