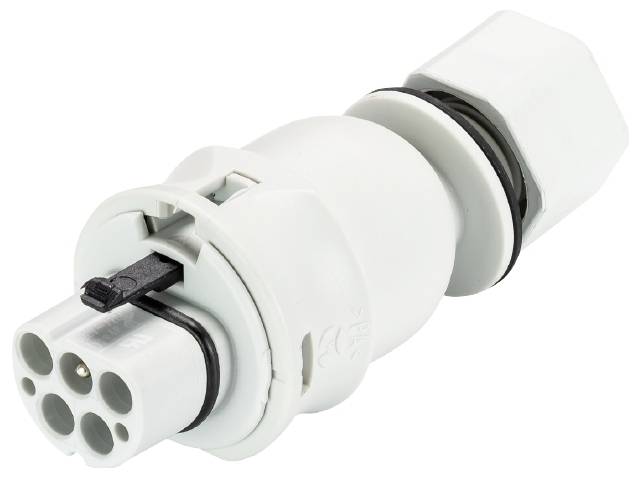

Wieland Electric 96.056.6153.0 Appliance connector
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 12.60
3
5% = € 0.63
€ 11.97
5
7% = € 0.88
€ 11.72
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 12.60 / piece)
€ 12.60
plus VAT.
14-day return policy included
Technical specifications
- Product type
Appliance connector
- Type A
Plug
- Connector version
angled
- Connection
Screw connection
- Rated voltage
250 V
- Test current
20 A
- Number of pins
5
IP66
34.6 mm
Plug
TRUE
34.6 mm
Screw connection
Integrated in plug-in connector
20 A
250 V
5
85 mm
Polyamide (PA)
Silver-plated
3
Angled
4 kV
0.55 mOhm
CuZn
M16
IP66
1
3, N, PE, 2, 1
Grey
0.226 kWh
Grey
0.75-4 mm²
0.75-4 mm²
100 °C
7035
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3285967 Wieland Electric 96.056.6153.0 Appliance connector
Description
RST® CLASSIC device connection
Modular
7° angle
M16
Number of pins: 5
Plug version
Connection type: screw terminals.
Rated voltage 250 V / 400 V
Rated current 20 A
Coding color / contact insert light GRAY
This text is machine translated.
Modular
7° angle
M16
Number of pins: 5
Plug version
Connection type: screw terminals.
Rated voltage 250 V / 400 V
Rated current 20 A
Coding color / contact insert light GRAY
This text is machine translated.
