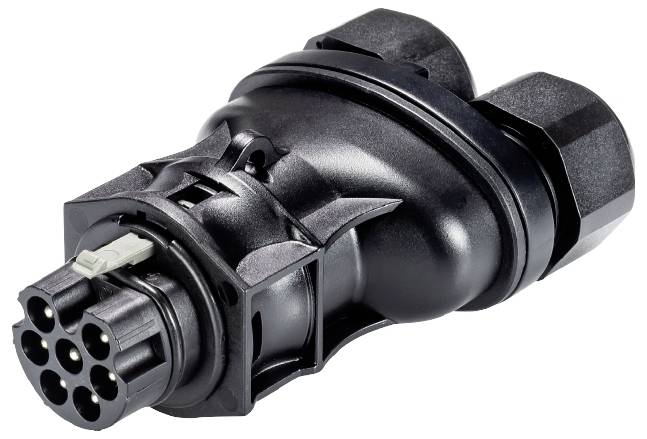

Wieland Electric 96.072.4253.1 Connector
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 22.68
3
4% = € 0.89
€ 21.79
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 22.68 / piece)
€ 22.68
plus VAT.
Only 1 Piece(s) available
Technical specifications
- Product type
Connector
- Type A
Plug
- Connection
Screw connection
- Rated voltage
250 V
- Test current
20 A
- Cable Ø (max.)
10 mm
- Cable Ø up to
6 mm
- Cable Ø range
6 - 10 mm
- Number of pins
7
IP66
- System
gesis® CLASSIC
59 mm
Plug
TRUE
38 mm
Screw connection
Integrated in plug-in connector
20 A
250 V
TRUE
7
Polyamide (PA)
6-10 mm
Silver-plated
3
4 kV
0.65 mOhm
CuZn
IP66
1
Black
0.543 kWh
0.2-2.5 mm²
0.2-1.5 mm²
100 °C
9005
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3285516 Wieland Electric 96.072.4253.1 Connector
Description
RST® CLASSIC connectors
Double connector
Number of poles 7
Connector
Connection type: screw terminals.
Rated voltage 250 V / 400 V
Rated current 20 A
Cable diameter 6 - 10 mm
Coding color / contact insert black
This text is machine translated.
Double connector
Number of poles 7
Connector
Connection type: screw terminals.
Rated voltage 250 V / 400 V
Rated current 20 A
Cable diameter 6 - 10 mm
Coding color / contact insert black
This text is machine translated.
