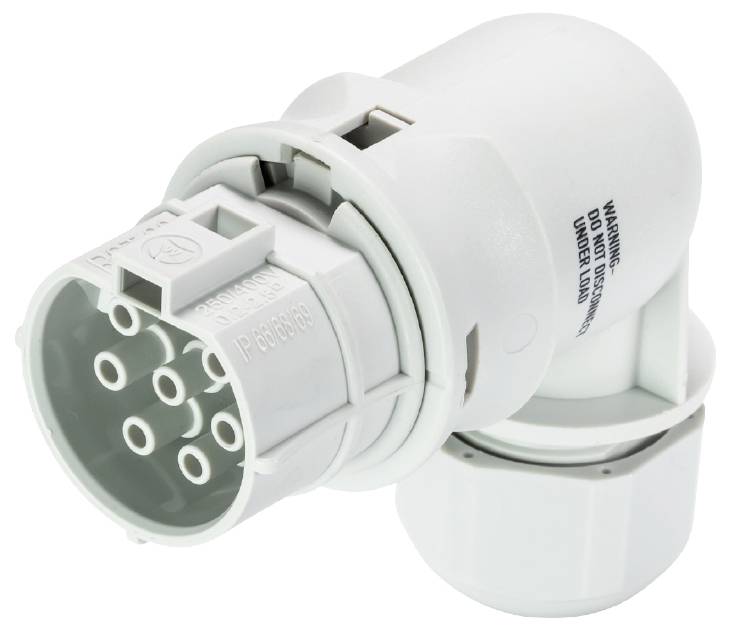

Wieland Electric 96.073.4053.0 Connector
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 11.76
3
5% = € 0.59
€ 11.17
5
7% = € 0.82
€ 10.94
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 11.76 / piece)
€ 11.76
plus VAT.
14-day return policy included
Technical specifications
- Product type
Connector
- Type A
Socket
- Type B
Socket
- Connector version
angled
- Connection
Screw connection
- Rated voltage
250 V
- Test current
20 A
- Cable Ø (max.)
10 mm
- Cable Ø up to
6 mm
- Cable Ø range
6 - 10 mm
- Number of pins
7
IP66
34.6 mm
Bus
TRUE
63.8 mm
Screw connection
Integrated in plug-in connector
20 A
250 V
TRUE
7
75.3 mm
Polyamide (PA)
6-10 mm
Silver-plated
3
4 kV
0.65 mOhm
CuZn
IP66
1
Grey
0.356 kWh
0.2-2.5 mm²
0.2-1.5 mm²
100 °C
7035
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3285801 Wieland Electric 96.073.4053.0 Connector
Description
RST® CLASSIC connectors
90° angle
Number of poles 7
Socket
Connection type: screw terminals.
Rated voltage 250 V / 400 V
Rated current 20 A
Cable diameter 6 - 10 mm
Coding color / contact insert light GRAY
This text is machine translated.
90° angle
Number of poles 7
Socket
Connection type: screw terminals.
Rated voltage 250 V / 400 V
Rated current 20 A
Cable diameter 6 - 10 mm
Coding color / contact insert light GRAY
This text is machine translated.
