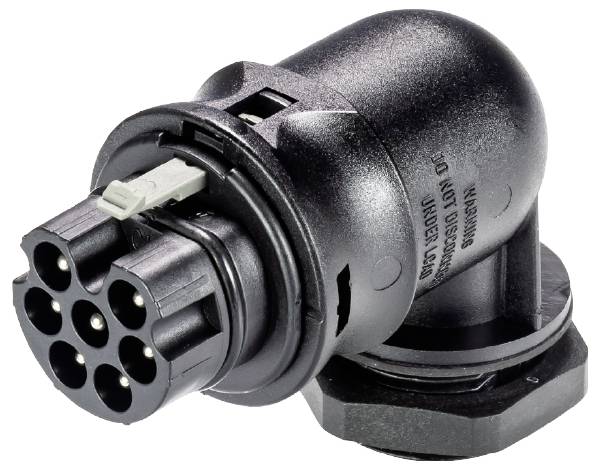

Wieland Electric 96.074.6253.1 Appliance connector
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 13.44
3
5% = € 0.67
€ 12.77
5
7% = € 0.94
€ 12.50
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 13.44 / piece)
€ 13.44
plus VAT.
Technical specifications
- Product type
Appliance connector
- Type A
Plug
- Connector version
90-degree
- Connection
Screw connection
- Rated voltage
250 V
- Test current
20 A
- Number of pins
7
IP66
34.6 mm
Plug
TRUE
54.3 mm
Screw connection
Integrated in plug-in connector
20 A
250 V
7
71.3 mm
Polyamide (PA)
Silver-plated
3
Right-angled
4 kV
0.65 mOhm
CuZn
M25
IP66
1
Black
0.276 kWh
0.2-2.5 mm²
0.2-2.5 mm²
100 °C
9005
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3286078 Wieland Electric 96.074.6253.1 Appliance connector
Description
RST® CLASSIC device connection
Modular
90° angle
M25
Number of poles 7
Plug version
Connection type: screw terminals.
Rated voltage 250 V / 400 V
Rated current 20 A
Coding color / contact insert black
This text is machine translated.
Modular
90° angle
M25
Number of poles 7
Plug version
Connection type: screw terminals.
Rated voltage 250 V / 400 V
Rated current 20 A
Coding color / contact insert black
This text is machine translated.
