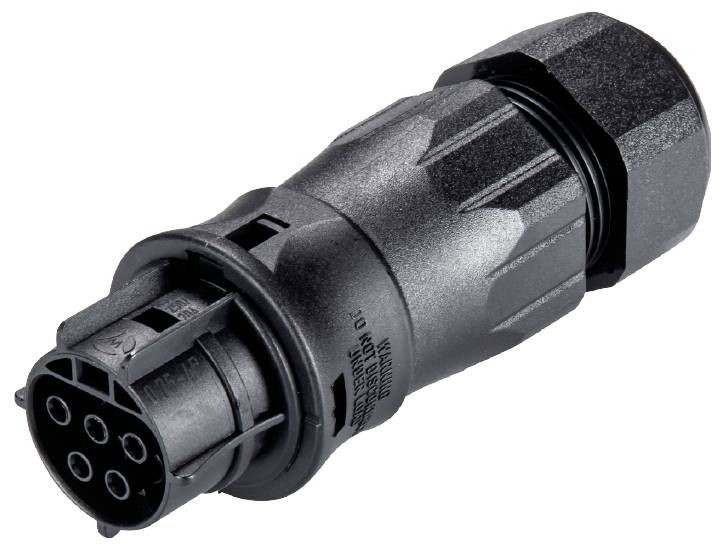

Wieland Electric 96.151.0553.1 Connector
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 11.76
3
5% = € 0.59
€ 11.17
5
7% = € 0.82
€ 10.94
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 11.76 / piece)
€ 11.76
plus VAT.
Technical specifications
- Product type
Connector
- Type A
Socket
- Type B
Socket
- Connector version
straight
- Connection
Crimp
- Rated voltage
250 V
- Test current
20 A
- Cable Ø (max.)
18 mm
- Cable Ø up to
13 mm
- Cable Ø range
13 - 18 mm
- Number of pins
5
IP66
35.4 mm
Bus
TRUE
35.4 mm
Crimp
Integrated in plug-in connector
20 A
250 V
TRUE
5
96.6 mm
Polyamide (PA)
13-18 mm
Silver-plated
3
4 kV
0.7 mOhm
CuZn
IP66
1
3, N, PE, 2, 1
Black
0.357 kWh
0.75-4 mm²
100 °C
9005
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3286033 Wieland Electric 96.151.0553.1 Connector
Description
RST® CLASSIC connectors
straight
Number of pins: 5
Socket
Connection type crimp
Rated voltage 250 V / 400 V
Rated current 20 A
Cable diameter 13 - 18 mm
Coding color / contact insert black
This text is machine translated.
straight
Number of pins: 5
Socket
Connection type crimp
Rated voltage 250 V / 400 V
Rated current 20 A
Cable diameter 13 - 18 mm
Coding color / contact insert black
