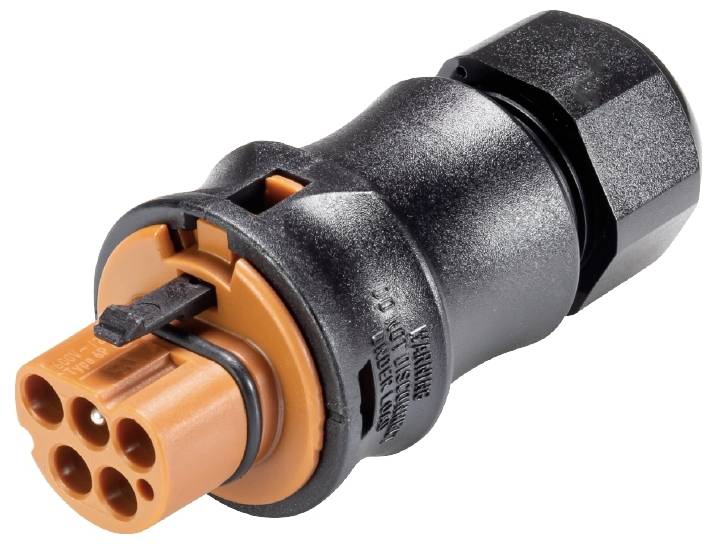

Wieland Electric 96.152.0151.4 Connector
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.08
3
5% = € 0.53
€ 9.55
5
7% = € 0.74
€ 9.34
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 10.08 / piece)
€ 10.08
plus VAT.
14-day return policy included
Technical specifications
- Product type
Connector
- Type A
Plug
- Connector version
straight
- Connection
Crimp
- Rated voltage
50 V
- Test current
20 A
- Cable Ø (max.)
14 mm
- Cable Ø up to
10 mm
- Cable Ø range
10 - 14 mm
- Number of pins
5
IP66
34.6 mm
Plug
TRUE
34.6 mm
Crimp
Integrated in plug-in connector
20 A
50 V
TRUE
5
78.4 mm
Polyamide (PA)
10-14 mm
Silver-plated
3
4 kV
0.7 mOhm
CuZn
IP66
1
1, 2, 3, 4, 5
Other
0.281 kWh
0.75-4 mm²
100 °C
8002
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3286221 Wieland Electric 96.152.0151.4 Connector
Description
RST® CLASSIC connectors
straight
Number of pins: 5
Connector
Connection type crimp
Rated voltage 50 V / 120 V
Rated current 20 A
Cable diameter 10 - 14 mm
Coding color / contact insert signal brown
This text is machine translated.
straight
Number of pins: 5
Connector
Connection type crimp
Rated voltage 50 V / 120 V
Rated current 20 A
Cable diameter 10 - 14 mm
Coding color / contact insert signal brown
