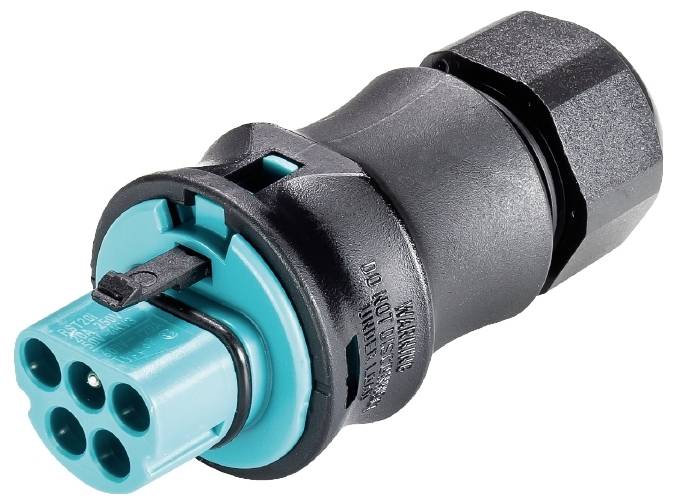

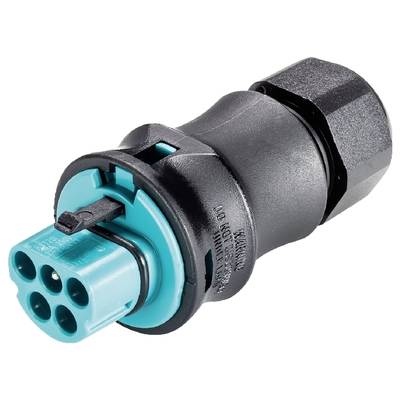

Wieland Electric 96.152.0153.6 Connector
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.08
3
5% = € 0.53
€ 9.55
5
7% = € 0.74
€ 9.34
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 10.08 / piece)
€ 10.08
plus VAT.
Technical specifications
- Product type
Connector
- Type A
Plug
- Connector version
straight
- Connection
Crimp
- Rated voltage
250 V
- Test current
20 A
- Cable Ø (max.)
14 mm
- Cable Ø up to
10 mm
- Cable Ø range
10 - 14 mm
- Number of pins
5
IP66
34.6 mm
Plug
TRUE
34.6 mm
Crimp
Integrated in plug-in connector
20 A
250 V
TRUE
5
78.4 mm
Polyamide (PA)
10-14 mm
Silver-plated
3
4 kV
0.7 mOhm
CuZn
IP66
1
L, N, PE, D1, D2
Blue
0.282 kWh
0.75-4 mm²
100 °C
5018
Description
RST® CLASSIC connectors
straight
Number of pins: 5
Connector
Connection type crimp
Rated voltage: 250 V
Rated current 20 A
Cable diameter 10 - 14 mm
Coding color / contact insert, turquoise
This text is machine translated.
straight
Number of pins: 5
Connector
Connection type crimp
Rated voltage: 250 V
Rated current 20 A
Cable diameter 10 - 14 mm
Coding color / contact insert, turquoise
This text is machine translated.
