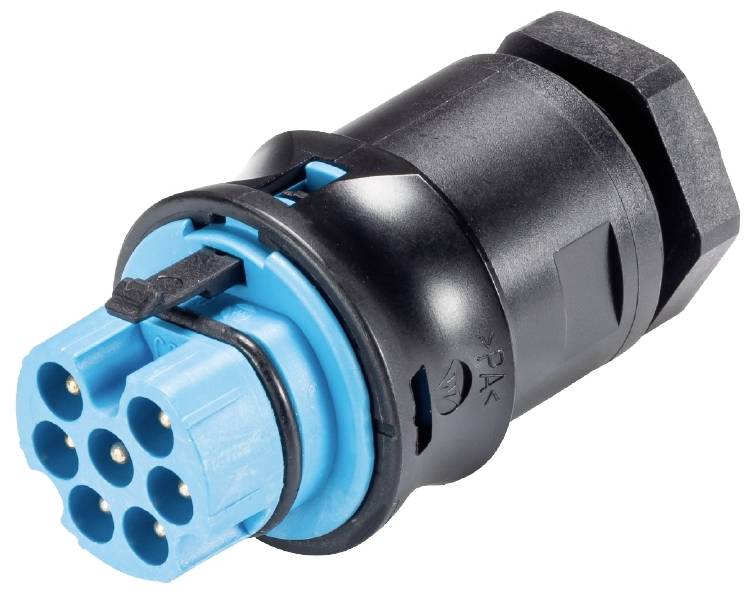

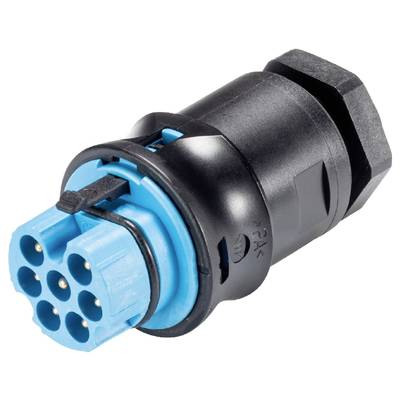

Wieland Electric 96.172.2053.9 Appliance connector
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.08
3
5% = € 0.53
€ 9.55
5
7% = € 0.74
€ 9.34
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 10.08 / piece)
€ 10.08
plus VAT.
Technical specifications
- Product type
Appliance connector
- Type A
Plug
- Connector version
straight
- Connection
Crimp
- Rated voltage
250 V
- Test current
20 A
- Number of pins
7
IP66
34.6 mm
Plug
TRUE
34.6 mm
Crimp
Integrated in plug-in connector
20 A
250 V
7
66 mm
Polyamide (PA)
Silver-plated
3
Straight
4 kV
0.65 mOhm
CuZn
M20
IP66
1
Blue
0.232 kWh
Black
0.75-2.5 mm²
100 °C
5012
Description
RST® CLASSIC device connection
Modular
straight
M20
Number of poles 7
Plug version
Connection type crimp
Rated voltage 250 V / 400 V
Rated current 20 A
Coding color / contact insert light blue
This text is machine translated.
Modular
straight
M20
Number of poles 7
Plug version
Connection type crimp
Rated voltage 250 V / 400 V
Rated current 20 A
Coding color / contact insert light blue
This text is machine translated.
