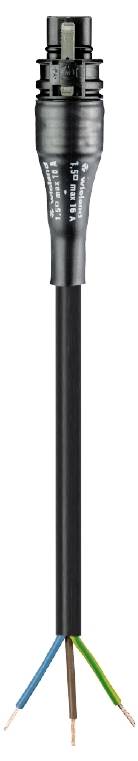

Wieland Electric 96.232.0534.1 Cable Black 500 mm
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.08
3
5% = € 0.53
€ 9.55
5
7% = € 0.74
€ 9.34
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 10.08 / piece)
€ 10.08
plus VAT.
Technical specifications
- Product type
Cable
- Cable length
500 mm
- Type A
Open cable ends
- Type B
Plug
- Factory colour
Black
- Connection
PG plug
- Rated voltage
250 V
- Test current
16 A
- Cable Ø (max.)
10 mm
- Cable Ø up to
9.6 mm
- Cable Ø range
9.6 - 10 mm
- Number of pins
3
IP66
- System
gesis® CLASSIC
FALSE
1.5 mm²
H07RN-F
Black
Integrated in plug-in connector
16 A
250 V
500 m
3
Polyamide (PA)
Black
9.6-10 mm
Silver-plated
3
TRUE
4 kV
6.25 mOhm
CuZn
IP66
L, N, PE
Black
0.397 kWh
9 mm
35
Device connection cable
Plug
Free conductor end
100 °C
Ultrasonic compressed wire ends
60 °C
Eca
None
None
None
9005
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3286183 Wieland Electric 96.232.0534.1 Cable Black 500 mm
Description
RST® CLASSIC connection cable
Free cable end - connector
Number of poles: 3
Rated voltage: 250 V
Rated current 16 A
Cable type H07RN-F
Fire class ECA
Total length 0.5 m
Conductor nominal cross-section 1.5 mm²
Coding color / contact insert black
This text is machine translated.
Free cable end - connector
Number of poles: 3
Rated voltage: 250 V
Rated current 16 A
Cable type H07RN-F
Fire class ECA
Total length 0.5 m
Conductor nominal cross-section 1.5 mm²
Coding color / contact insert black
This text is machine translated.
