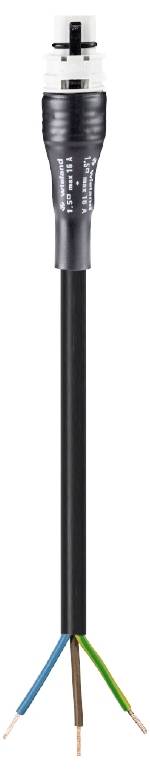

Wieland Electric 96.232.2034.0 Cable 2000 mm
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 13.44
3
5% = € 0.67
€ 12.77
5
7% = € 0.94
€ 12.50
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 13.44 / piece)
€ 13.44
plus VAT.
Technical specifications
- Product type
Cable
- Cable length
2000 mm
- Type A
Open cable ends
- Type B
Plug
- Connection
Cable with open ends
- Rated voltage
250 V
- Test current
16 A
- Cable Ø (max.)
10 mm
- Cable Ø up to
9.6 mm
- Cable Ø range
9.6 - 10 mm
- Number of pins
3
IP66
- System
gesis® CLASSIC
FALSE
1.5 mm²
H07RN-F
Other
Integrated in plug-in connector
16 A
250 V
2000 mm
3
Black
9.6-10 mm
Silver-plated
3
4 kV
23.35 mOhm
IP66
L, N, PE
Grey
1.339 kWh
9 mm
35 mm
Device connection cable
Free conductor end
Plug
100 °C
Ultrasonic compressed wire ends
60 °C
Eca
None
None
None
7035
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3286339 Wieland Electric 96.232.2034.0 Cable 2000 mm
Description
RST® CLASSIC connection cable
Free cable end - connector
Number of poles: 3
Rated voltage: 250 V
Rated current 16 A
Cable type H07RN-F
Fire class ECA
Total length 2 m
Conductor nominal cross-section 1.5 mm²
Coding color / contact insert light GRAY
This text is machine translated.
Free cable end - connector
Number of poles: 3
Rated voltage: 250 V
Rated current 16 A
Cable type H07RN-F
Fire class ECA
Total length 2 m
Conductor nominal cross-section 1.5 mm²
Coding color / contact insert light GRAY
This text is machine translated.
