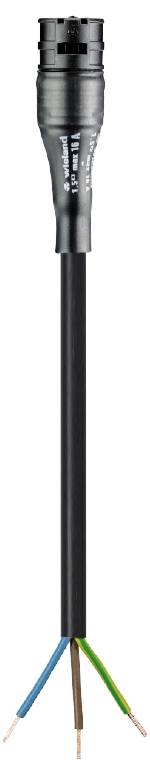

Wieland Electric 96.232.20C3.1 Cable Black 2 m
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 17.64
3
4% = € 0.79
€ 16.85
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 17.64 / piece)
€ 17.64
plus VAT.
Technical specifications
- Product type
Cable
- Cable length
2 m
- Type A
Socket
- Type B
Open cable ends
- Factory colour
Black
- Connection
Cable with open ends
- Rated voltage
250 V
- Test current
16 A
- Cable Ø (max.)
8.2 mm
- Cable Ø up to
7.8 mm
- Cable Ø range
7.8 - 8.2 mm
- Number of pins
3
IP66
TRUE
1.5 mm²
H05Z1Z1-F
Black
Integrated in plug-in connector
16 A
250 V
2000 mm
3
Black
7.8-8.2 mm
Silver-plated
3
4 kV
23.35 mOhm
IP66
L, N, PE
Black
0.716 kWh
9 mm
35 mm
Device connection cable
Bus
Free conductor end
100 °C
Ultrasonic compressed wire ends
70 °C
Cca
s1
d1
a1
9005
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3286526 Wieland Electric 96.232.20C3.1 Cable Black 2 m
Description
RST® CLASSIC connection cable
Socket - free cable end
Number of poles: 3
Rated voltage: 250 V
Rated current 16 A
Cable type H05Z1Z1-F
Fire class CCca s1 d1
Total length 2 m
Conductor nominal cross-section 1.5 mm²
Coding color / contact insert black
This text is machine translated.
Socket - free cable end
Number of poles: 3
Rated voltage: 250 V
Rated current 16 A
Cable type H05Z1Z1-F
Fire class CCca s1 d1
Total length 2 m
Conductor nominal cross-section 1.5 mm²
Coding color / contact insert black
This text is machine translated.
