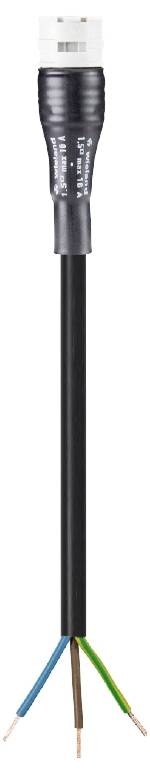

Wieland Electric 96.232.4063.0 Cable 4 m
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 16.80
3
4% = € 0.75
€ 16.05
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 16.80 / piece)
€ 16.80
plus VAT.
14-day return policy included
Technical specifications
- Product type
Cable
- Cable length
4 m
- Type A
Socket
- Type B
Open cable ends
- Connection
Cable with open ends
- Rated voltage
250 V
- Test current
16 A
- Cable Ø (max.)
8.2 mm
- Cable Ø up to
7.8 mm
- Cable Ø range
7.8 - 8.2 mm
- Number of pins
3
IP66
- System
gesis® CLASSIC
- Max. ambient temperature
70 °C
FALSE
1.5 mm²
S05Z1Z1-F
Black
Integrated in plug-in connector
16 A
250 V
4000 m
3
Polyamide (PA)
Black
7.8-8.2 mm
Silver-plated
3
TRUE
4 kV
46.15 mOhm
CuZn
IP66
L, N, PE
Other
1.584 kWh
9 mm
35
Device connection cable
Bus
Free conductor end
100 °C
Ultrasonic compressed wire ends
70 °C
Eca
None
None
None
7035
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3286701 Wieland Electric 96.232.4063.0 Cable 4 m
Description
RST® CLASSIC connection cable
Socket - free cable end
Number of poles: 3
Rated voltage: 250 V
Rated current 16 A
Cable type H05Z1Z1-F
Fire class ECA
Total length 4 m
Conductor nominal cross-section 1.5 mm²
Coding color / contact insert light GRAY
This text is machine translated.
Socket - free cable end
Number of poles: 3
Rated voltage: 250 V
Rated current 16 A
Cable type H05Z1Z1-F
Fire class ECA
Total length 4 m
Conductor nominal cross-section 1.5 mm²
Coding color / contact insert light GRAY
This text is machine translated.
