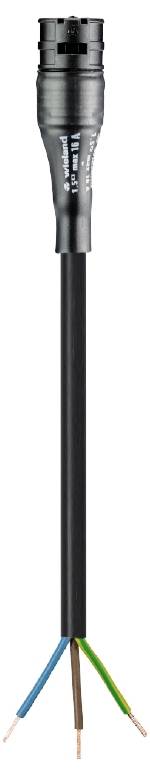

Wieland Electric 96.232.6053.1 Cable Black 6000 mm
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 29.40
3
4% = € 1.15
€ 28.25
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 29.40 / piece)
€ 29.40
plus VAT.
Technical specifications
- Product type
Cable
- Cable length
6000 mm
- Type A
Socket
- Type B
Open cable ends
- Factory colour
Black
- Connection
Stripped cable
- Rated voltage
250 V
- Test current
16 A
- Cable Ø (max.)
11.9 mm
- Cable Ø up to
9.2 mm
- Cable Ø range
9.2 - 11.9 mm
- Number of pins
3
IP66
- System
gesis® CLASSIC
TRUE
1.5 mm²
H07RN-F
Black
Integrated in plug-in connector
16 A
250 V
6000 m
3
Polyamide (PA)
Black
9.2-11.9 mm
Silver-plated
3
TRUE
4 kV
68.95 mΩ
CuZn
IP66
L, N, PE
Black
3834
9 mm
35
Device connection cable
Bus
Free conductor end
100 °C
Ultrasonic compressed wire ends
60 °C
Eca
None
None
None
9005
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3286643 Wieland Electric 96.232.6053.1 Cable Black 6000 mm
Description
RST® CLASSIC connection cable
Socket - free cable end
Number of poles: 3
Rated voltage: 250 V
Rated current 16 A
Conductor type H07RN-F - Enhanced Version
Total length 6 m
Conductor nominal cross-section 1.5 mm²
Coding color / contact insert black
This text is machine translated.
Socket - free cable end
Number of poles: 3
Rated voltage: 250 V
Rated current 16 A
Conductor type H07RN-F - Enhanced Version
Total length 6 m
Conductor nominal cross-section 1.5 mm²
Coding color / contact insert black
This text is machine translated.
