Wieland Electric 96.233.10C4.1 Cable Black
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 17.64
3
4% = € 0.79
€ 16.85
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 17.64 / piece)
€
Technical specifications
- Type A
Open cable ends
- Type B
Plug
- Factory colour
Black
- Cable Ø range
9.7 - 10.1 mm
IP66
- Number of pins
3
- Test current
20 A
- Rated voltage
250 V
- Cable Ø (max.)
10.1 mm
- Cable Ø up to
9.7 mm
TRUE
2.5 mm²
H05Z1Z1-F
Black
Integrated in plug-in connector
20 A
250 V
1000 mm
3
Black
9.7-10.1 mm
Silver-plated
3
4 kV
7.39 mOhm
IP66
L, N, PE
Black
0.566 kWh
9 mm
35 mm
Device connection cable
Free conductor end
Plug
100 °C
Ultrasonic compressed wire ends
70 °C
Cca
s1
d1
a1
9005
- Product type
Cable
Description

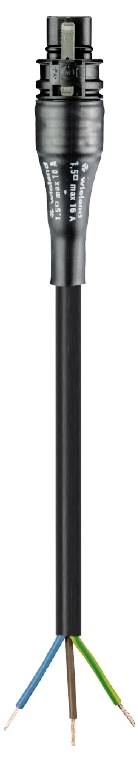

RST® CLASSIC connection cable
Free cable end - connector
Number of poles: 3
Rated voltage: 250 V
Rated current 20 A
Cable type H05Z1Z1-F
Fire class CCca s1 d1
Total length 1 m
Conductor nominal cross-section 2.5 mm²
Coding color / contact insert black
This text is machine translated.
Free cable end - connector
Number of poles: 3
Rated voltage: 250 V
Rated current 20 A
Cable type H05Z1Z1-F
Fire class CCca s1 d1
Total length 1 m
Conductor nominal cross-section 2.5 mm²
Coding color / contact insert black
This text is machine translated.
