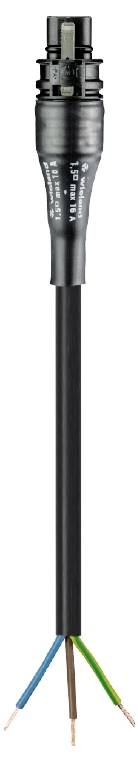

Wieland Electric 96.233.3064.1 Cable Black 3000 mm
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 19.32
3
5% = € 0.87
€ 18.45
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 19.32 / piece)
€ 19.32
plus VAT.
14-day return policy included
Technical specifications
- Product type
Cable
- Cable length
3000 mm
- Type A
Open cable ends
- Type B
Plug
- Factory colour
Black
- Connection
Cable with open ends
- Rated voltage
250 V
- Test current
20 A
- Cable Ø (max.)
10.1 mm
- Cable Ø up to
9.7 mm
- Cable Ø range
9.7 - 10.1 mm
- Number of pins
3
IP66
TRUE
2.5 mm²
H05Z1Z1-F
Black
Integrated in plug-in connector
20 A
250 V
3000 mm
3
Black
9.7-10.1 mm
Silver-plated
3
4 kV
21.07 mOhm
IP66
L, N, PE
Black
1.791 kWh
9 mm
35 mm
Device connection cable
Free conductor end
Plug
100 °C
Ultrasonic compressed wire ends
70 °C
Eca
None
None
None
9005
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3287018 Wieland Electric 96.233.3064.1 Cable Black 3000 mm
Description
RST® CLASSIC connection cable
Free cable end - connector
Number of poles: 3
Rated voltage: 250 V
Rated current 20 A
Cable type H05Z1Z1-F
Fire class ECA
Total length 3 m
Conductor nominal cross-section 2.5 mm²
Coding color / contact insert black
This text is machine translated.
Free cable end - connector
Number of poles: 3
Rated voltage: 250 V
Rated current 20 A
Cable type H05Z1Z1-F
Fire class ECA
Total length 3 m
Conductor nominal cross-section 2.5 mm²
Coding color / contact insert black
This text is machine translated.
