Wieland Electric 96.233.5033.1 Cable Black 5 m
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 28.56
3
4% = € 1.11
€ 27.45
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 28.56 / piece)
€ 28.56
plus VAT.
14-day return policy included
Technical specifications
- Product type
Cable
- Cable length
5 m
- Type A
Socket
- Type B
Open cable ends
- Factory colour
Black
- Rated voltage
250 V
- Test current
20 A
- Cable Ø (max.)
11.9 mm
- Cable Ø up to
11.3 mm
- Cable Ø range
11.3 - 11.9 mm
- Number of pins
3
IP66
FALSE
2.5 mm²
H07RN-F
Black
Integrated in plug-in connector
20 A
250 V
5000 m
3
Polyamide (PA)
Black
11.3-11.9 mm
Silver-plated
3
TRUE
4 kV
34.75 mΩ
CuZn
IP66
L, N, PE
Black
9 mm
35
Device connection cable
Bus
Free conductor end
100 °C
Ultrasonic compressed wire ends
60 °C
Eca
None
None
None
9005
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3286877 Wieland Electric 96.233.5033.1 Cable Black 5 m
Description

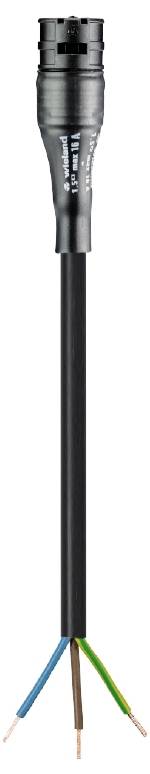

RST® CLASSIC connection cable
Socket - free cable end
Number of poles: 3
Rated voltage: 250 V
Rated current 20 A
Cable type H07RN-F
Fire class ECA
Total length 5 m
Conductor nominal cross-section 2.5 mm²
Coding color / contact insert black
This text is machine translated.
Socket - free cable end
Number of poles: 3
Rated voltage: 250 V
Rated current 20 A
Cable type H07RN-F
Fire class ECA
Total length 5 m
Conductor nominal cross-section 2.5 mm²
Coding color / contact insert black
This text is machine translated.
