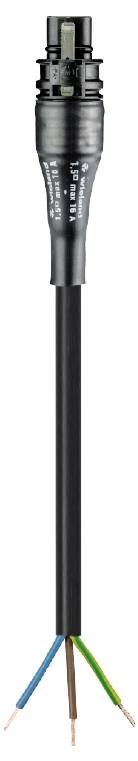

Wieland Electric 96.233.7034.1 Cable Black 7 mm
EAN:
Part number:
Item no:
Number
Total (€ 36.13 / piece)
€ 36.13
plus VAT.
14-day return policy included
Technical specifications
- Product type
Cable
- Cable length
7 mm
- Type A
Open cable ends
- Type B
Plug
- Factory colour
Black
- Connection
PG plug
- Rated voltage
250 V
- Test current
20 A
- Cable Ø (max.)
11.9 mm
- Cable Ø up to
11.3 mm
- Cable Ø range
11.3 - 11.9 mm
- Number of pins
3
IP66
FALSE
2.5 mm²
H07RN-F
Black
Integrated in plug-in connector
20 A
250 V
7000 m
3
Polyamide (PA)
Black
11.3-11.9 mm
Silver-plated
3
TRUE
4 kV
48.43 mΩ
CuZn
IP66
L, N, PE
Black
9 mm
35
Device connection cable
Plug
Free conductor end
100 °C
Ultrasonic compressed wire ends
60 °C
Eca
None
None
None
9005
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3286779 Wieland Electric 96.233.7034.1 Cable Black 7 mm
Description
RST® CLASSIC connection cable
Free cable end - connector
Number of poles: 3
Rated voltage: 250 V
Rated current 20 A
Cable type H07RN-F
Fire class ECA
Total length 7 m
Conductor nominal cross-section 2.5 mm²
Coding color / contact insert black
This text is machine translated.
Free cable end - connector
Number of poles: 3
Rated voltage: 250 V
Rated current 20 A
Cable type H07RN-F
Fire class ECA
Total length 7 m
Conductor nominal cross-section 2.5 mm²
Coding color / contact insert black
This text is machine translated.
