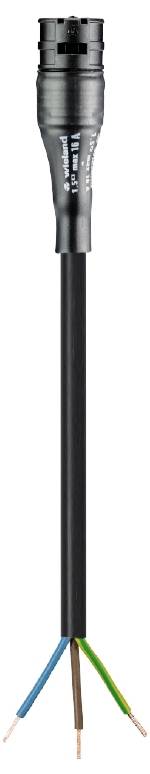

Wieland Electric 96.233.9063.1 Cable Black 9000 mm
EAN:
Part number:
Item no:
Number
Total (€ 39.49 / piece)
€ 39.49
plus VAT.
14-day return policy included
Technical specifications
- Product type
Cable
- Cable length
9000 mm
- Type A
Socket
- Type B
Open cable ends
- Factory colour
Black
- Connection
Cable with open ends
- Rated voltage
250 V
- Test current
20 A
- Cable Ø (max.)
10.1 mm
- Cable Ø up to
9.7 mm
- Cable Ø range
9.7 - 10.1 mm
- Number of pins
3
IP66
- System
gesis® CLASSIC
TRUE
2.5 mm²
H05Z1Z1-F
Black
Integrated in plug-in connector
20 A
250 V
9000 m
3
Polyamide (PA)
Black
9.7-10.1 mm
Silver-plated
3
TRUE
4 kV
62.11 mΩ
CuZn
IP66
L, N, PE
Black
5205
9 mm
35
Device connection cable
Bus
Free conductor end
100 °C
Ultrasonic compressed wire ends
70 °C
Eca
None
None
None
9005
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3287143 Wieland Electric 96.233.9063.1 Cable Black 9000 mm
Description
RST® CLASSIC connection cable
Socket - free cable end
Number of poles: 3
Rated voltage: 250 V
Rated current 20 A
Cable type H05Z1Z1-F
Fire class ECA
Total length 9 m
Conductor nominal cross-section 2.5 mm²
Coding color / contact insert black
This text is machine translated.
Socket - free cable end
Number of poles: 3
Rated voltage: 250 V
Rated current 20 A
Cable type H05Z1Z1-F
Fire class ECA
Total length 9 m
Conductor nominal cross-section 2.5 mm²
Coding color / contact insert black
This text is machine translated.
