Wieland Electric 96.442.2033.1 Cable Black 2 m
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 18.48
3
4% = € 0.82
€ 17.66
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 18.48 / piece)
€ 18.48
plus VAT.
14-day return policy included
Technical specifications
- Product type
Cable
- Cable length
2 m
- Type A
Socket
- Type B
Open cable ends
- Factory colour
Black
- Rated voltage
250 V
- Test current
16 A
- Cable Ø (max.)
12.5 mm
- Cable Ø up to
10.2 mm
- Cable Ø range
10.2 - 12.5 mm
- Number of pins
4
IP66
- System
gesis® CLASSIC
FALSE
1.5 mm²
H07RN-F
Black
Integrated in plug-in connector
16 A
250 V
2000 mm
4
Black
10.2-12.5 mm
Silver-plated
3
4 kV
23.35 mOhm
IP66
1, 2, 3, PE
Black
9 mm
35 mm
Device connection cable
Bus
Free conductor end
100 °C
Ultrasonic compressed wire ends
60 °C
None
None
None
None
9005
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3286850 Wieland Electric 96.442.2033.1 Cable Black 2 m
Description

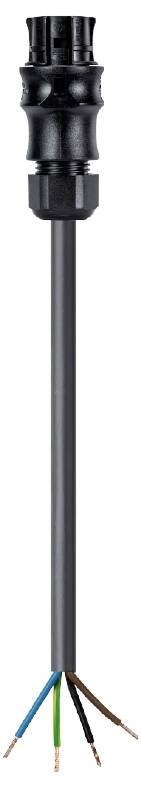

RST® CLASSIC connection cable
Socket - free cable end
Number of pins: 4
Rated voltage 250 V / 400 V
Rated current 16 A
Cable type H07RN-F
Total length 2 m
Conductor nominal cross-section 1.5 mm²
Coding color / contact insert black
This text is machine translated.
Socket - free cable end
Number of pins: 4
Rated voltage 250 V / 400 V
Rated current 16 A
Cable type H07RN-F
Total length 2 m
Conductor nominal cross-section 1.5 mm²
Coding color / contact insert black
This text is machine translated.
