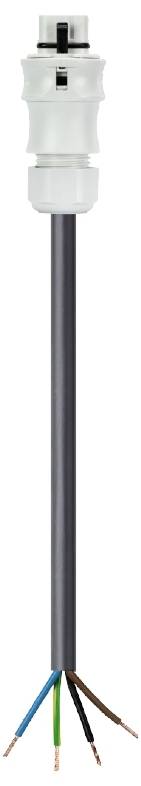

Wieland Electric 96.442.3004.0 Cable 3000 mm
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 18.48
3
4% = € 0.82
€ 17.66
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 18.48 / piece)
€ 18.48
plus VAT.
Technical specifications
- Product type
Cable
- Cable length
3000 mm
- Type A
Open cable ends
- Type B
Plug
- Connection
Stripped cable
- Rated voltage
250 V
- Test current
16 A
- Cable Ø (max.)
9.4 mm
- Cable Ø up to
9 mm
- Cable Ø range
9 - 9.4 mm
- Number of pins
4
IP66
FALSE
1.5 mm²
H05VV-F
Black
Integrated in plug-in connector
16 A
400 V
3000 m
4
Polyamide (PA)
Black
9-9.4 mm
Silver-plated
3
TRUE
4 kV
34.75 mΩ
CuZn
IP65
1, 2, 3, PE
Grey
1.57
9 mm
35
Device connection cable
Plug
Free conductor end
100 °C
Ultrasonic compressed wire ends
70 °C
Eca
None
None
None
7035
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3286914 Wieland Electric 96.442.3004.0 Cable 3000 mm
Description
RST® CLASSIC connection cable
Free cable end - connector
Number of pins: 4
Rated voltage 250 V / 400 V
Rated current 16 A
Cable type H05VV-F
Fire class ECA
Total length 3 m
Conductor nominal cross-section 1.5 mm²
Coding color / contact insert light GRAY
This text is machine translated.
Free cable end - connector
Number of pins: 4
Rated voltage 250 V / 400 V
Rated current 16 A
Cable type H05VV-F
Fire class ECA
Total length 3 m
Conductor nominal cross-section 1.5 mm²
Coding color / contact insert light GRAY
This text is machine translated.
