Wieland Electric 96.452.10B3.1 Cable Black
EAN:
Part number:
Item no:
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 24.36
3
4% = € 0.95
€ 23.41
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 24.36 / piece)
€
Technical specifications
- Product type
Cable
- Type A
Socket
- Type B
Open cable ends
- Factory colour
Black
- Rated voltage
250 V
- Test current
16 A
- Cable Ø (max.)
10.4 mm
- Cable Ø up to
9.8 mm
- Cable Ø range
9.8 - 10.4 mm
- Number of pins
5
IP66
TRUE
1.5 mm²
H05Z1Z1-F
Black
Integrated in plug-in connector
16 A
250 V
1000 mm
5
Black
9.8-10.4 mm
Silver-plated
3
4 kV
11.95 mOhm
IP66
3, N, PE, 2, 1
Black
0.784 kWh
9 mm
35 mm
Device connection cable
Bus
Free conductor end
100 °C
Ultrasonic compressed wire ends
70 °C
B2ca
s1
d1
a1
9005
Description

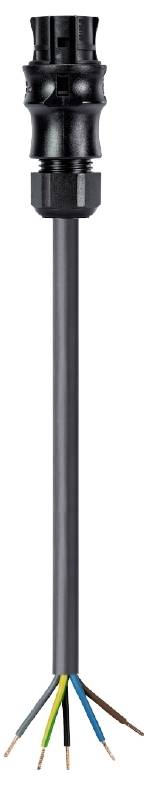

RST® CLASSIC connection cable
Socket - free cable end
Number of pins: 5
Rated voltage 250 V / 400 V
Rated current 16 A
Cable type H05Z1Z1-F
Fire class B2ca s1 d1
Total length 1 m
Conductor nominal cross-section 1.5 mm²
Coding color / contact insert black
This text is machine translated.
Socket - free cable end
Number of pins: 5
Rated voltage 250 V / 400 V
Rated current 16 A
Cable type H05Z1Z1-F
Fire class B2ca s1 d1
Total length 1 m
Conductor nominal cross-section 1.5 mm²
Coding color / contact insert black
This text is machine translated.
