Wieland Electric 96.452.2034.1 Cable Black 2 mm
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 25.20
3
4% = € 0.98
€ 24.22
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 25.20 / piece)
€ 25.20
plus VAT.
Technical specifications
- Product type
Cable
- Cable length
2 mm
- Type A
Open cable ends
- Type B
Plug
- Factory colour
Black
- Rated voltage
250 V
- Test current
16 A
- Cable Ø (max.)
12.3 mm
- Cable Ø up to
12.1 mm
- Cable Ø range
12.1 - 12.3 mm
- Number of pins
5
IP66
FALSE
1.5 mm²
H07RN-F
Black
Integrated in plug-in connector
16 A
250 V
2000 m
5
Polyamide (PA)
Black
12.1-12.3 mm
Silver-plated
3
TRUE
4 kV
23.35 mΩ
CuZn
IP66
3, N, PE, 2, 1
Black
2526
9 mm
35
Device connection cable
Plug
Free conductor end
100 °C
Ultrasonic compressed wire ends
60 °C
Eca
None
None
None
9005
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3286919 Wieland Electric 96.452.2034.1 Cable Black 2 mm
Description

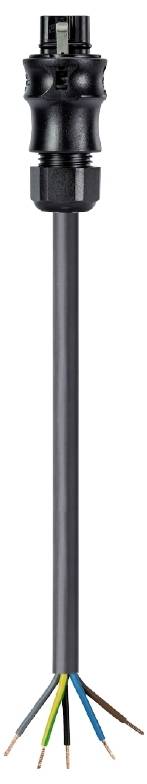

RST® CLASSIC connection cable
Free cable end - connector
Number of pins: 5
Rated voltage 250 V / 400 V
Rated current 16 A
Cable type H07RN-F
Total length 2 m
Conductor nominal cross-section 1.5 mm²
Coding color / contact insert black
This text is machine translated.
Free cable end - connector
Number of pins: 5
Rated voltage 250 V / 400 V
Rated current 16 A
Cable type H07RN-F
Total length 2 m
Conductor nominal cross-section 1.5 mm²
Coding color / contact insert black
This text is machine translated.
