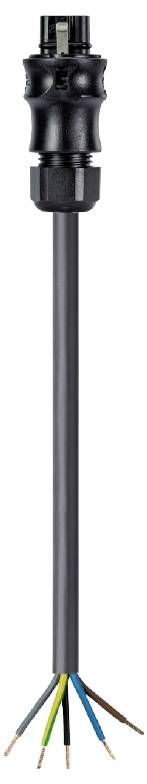

Wieland Electric 96.452.30B4.1 Cable Black 3 m
EAN:
Part number:
Item no:
Number
Total (€ 37.81 / piece)
€ 37.81
plus VAT.
Technical specifications
- Product type
Cable
- Cable length
3 m
- Type A
Open cable ends
- Type B
Plug
- Factory colour
Black
- Connection
Cable with open ends
- Rated voltage
250 V
- Test current
16 A
- Cable Ø (max.)
10.4 mm
- Cable Ø up to
9.8 mm
- Cable Ø range
9.8 - 10.4 mm
- Number of pins
5
IP66
- System
gesis® CLASSIC
TRUE
1.5 mm²
H05Z1Z1-F
Black
Integrated in plug-in connector
16 A
250 V
3000 mm
5
Black
9.8-10.4 mm
Silver-plated
3
4 kV
34.75 mOhm
IP66
3, N, PE, 2, 1
Black
1.765 kWh
9 mm
35 mm
Device connection cable
Free conductor end
Plug
100 °C
Ultrasonic compressed wire ends
70 °C
B2ca
s1
d1
a1
9005
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3287467 Wieland Electric 96.452.30B4.1 Cable Black 3 m
Description
RST® CLASSIC connection cable
Free cable end - connector
Number of pins: 5
Rated voltage 250 V / 400 V
Rated current 16 A
Cable type H05Z1Z1-F
Fire class B2ca s1 d1
Total length 3 m
Conductor nominal cross-section 1.5 mm²
Coding color / contact insert black
This text is machine translated.
Free cable end - connector
Number of pins: 5
Rated voltage 250 V / 400 V
Rated current 16 A
Cable type H05Z1Z1-F
Fire class B2ca s1 d1
Total length 3 m
Conductor nominal cross-section 1.5 mm²
Coding color / contact insert black
This text is machine translated.
