Wieland Electric 96.452.7054.1 Cable Black
EAN:
Part number:
Item no:
Number
Total (€ 53.77 / piece)
€ 53.77
plus VAT.
Technical specifications
- Product type
Cable
- Type A
Open cable ends
- Type B
Plug
- Factory colour
Black
- Rated voltage
250 V
- Test current
16 A
- Cable Ø (max.)
12.2 mm
- Cable Ø up to
11.2 mm
- Cable Ø range
11.2 - 12.2 mm
- Number of pins
5
IP66
TRUE
1.5 mm²
H07RN-F
Black
Integrated in plug-in connector
16 A
250 V
7000 mm
5
Black
11.2-12.2 mm
Silver-plated
3
4 kV
80.35 mOhm
IP66
3, N, PE, 2, 1
Black
8.126 kWh
9 mm
35 mm
Device connection cable
Free conductor end
Plug
Ultrasonic compressed wire ends
None
None
None
None
9005
Description

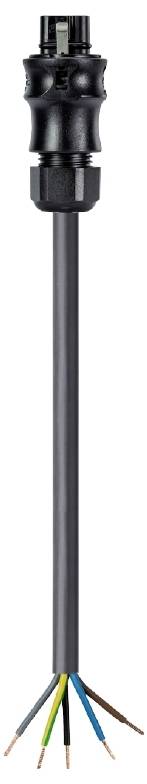

RST® CLASSIC connection cable
Free cable end - connector
Number of pins: 5
Rated voltage 250 V / 400 V
Rated current 16 A
Conductor type H07RN-F - Enhanced Version
Total length 7 m
Conductor nominal cross-section 1.5 mm²
Coding color / contact insert black
This text is machine translated.
Free cable end - connector
Number of pins: 5
Rated voltage 250 V / 400 V
Rated current 16 A
Conductor type H07RN-F - Enhanced Version
Total length 7 m
Conductor nominal cross-section 1.5 mm²
Coding color / contact insert black
