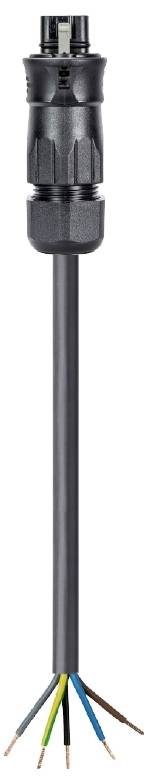

Wieland Electric 96.453.1054.1 Cable Black 1 m
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 24.36
3
4% = € 0.95
€ 23.41
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 24.36 / piece)
€ 24.36
plus VAT.
Technical specifications
- Product type
Cable
- Cable length
1 m
- Type A
Open cable ends
- Type B
Plug
- Factory colour
Black
- Connection
Cable with open ends
- Rated voltage
250 V
- Test current
20 A
- Cable Ø (max.)
14.3 mm
- Cable Ø up to
13.3 mm
- Cable Ø range
13.3 - 14.3 mm
- Number of pins
5
IP66
- System
gesis® CLASSIC
TRUE
2.5 mm²
H07RN-F
Black
Integrated in plug-in connector
20 A
250 V
1000 mm
5
Black
13.3-14.3 mm
Silver-plated
3
4 kV
7.39 mOhm
IP66
3, N, PE, 2, 1
Black
1.491 kWh
9 mm
35 mm
Device connection cable
Free conductor end
Plug
Ultrasonic compressed wire ends
None
None
None
None
9005
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3287368 Wieland Electric 96.453.1054.1 Cable Black 1 m
Description
RST® CLASSIC connection cable
Free cable end - connector
Number of pins: 5
Rated voltage 250 V / 400 V
Rated current 20 A
Conductor type H07RN-F - Enhanced Version
Total length 1 m
Conductor nominal cross-section 2.5 mm²
Coding color / contact insert black
This text is machine translated.
Free cable end - connector
Number of pins: 5
Rated voltage 250 V / 400 V
Rated current 20 A
Conductor type H07RN-F - Enhanced Version
Total length 1 m
Conductor nominal cross-section 2.5 mm²
Coding color / contact insert black
This text is machine translated.
