Wieland Electric 96.453.10C3.1 Cable Black 1 m
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 26.04
3
4% = € 1.01
€ 25.03
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 26.04 / piece)
€ 26.04
plus VAT.
Technical specifications
- Product type
Cable
- Cable length
1 m
- Type A
Socket
- Type B
Open cable ends
- Factory colour
Black
- Connection
Cable with open ends
- Rated voltage
250 V
- Test current
20 A
- Cable Ø (max.)
12.4 mm
- Cable Ø up to
11.8 mm
- Cable Ø range
11.8 - 12.4 mm
- Number of pins
5
IP66
TRUE
2.5 mm²
H05Z1Z1-F
Black
Integrated in plug-in connector
20 A
250 V
1000 mm
5
Black
11.8-12.4 mm
Silver-plated
3
4 kV
7.39 mOhm
IP66
3, N, PE, 2, 1
Black
0.981 kWh
9 mm
35 mm
Device connection cable
Bus
Free conductor end
Ultrasonic compressed wire ends
Cca
s1
d1
a1
9005
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3287523 Wieland Electric 96.453.10C3.1 Cable Black 1 m
Description

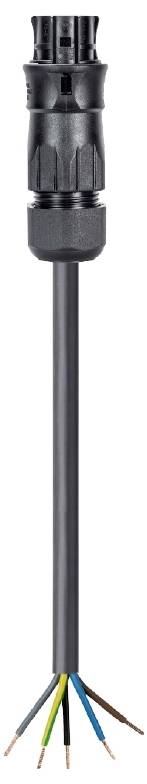

RST® CLASSIC connection cable
Socket - free cable end
Number of pins: 5
Rated voltage 250 V / 400 V
Rated current 20 A
Cable type H05Z1Z1-F
Fire class CCca s1 d1
Total length 1 m
Conductor nominal cross-section 2.5 mm²
Coding color / contact insert black
This text is machine translated.
Socket - free cable end
Number of pins: 5
Rated voltage 250 V / 400 V
Rated current 20 A
Cable type H05Z1Z1-F
Fire class CCca s1 d1
Total length 1 m
Conductor nominal cross-section 2.5 mm²
Coding color / contact insert black
