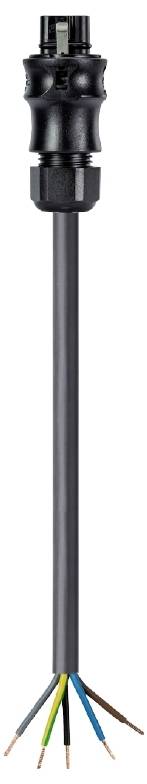

Wieland Electric 96.453.20C4.1 Cable Black 2 m
EAN:
Part number:
Item no:
Number
Total (€ 34.45 / piece)
€ 34.45
plus VAT.
Technical specifications
- Product type
Cable
- Cable length
2 m
- Type A
Open cable ends
- Type B
Plug
- Factory colour
Black
- Connection
Cable with open ends
- Rated voltage
250 V
- Test current
20 A
- Cable Ø (max.)
12.4 mm
- Cable Ø up to
11.8 mm
- Cable Ø range
11.8 - 12.4 mm
- Number of pins
5
IP66
- System
gesis® CLASSIC
TRUE
2.5 mm²
H05Z1Z1-F
Black
Integrated in plug-in connector
20 A
250 V
2000 mm
5
Black
11.8-12.4 mm
Silver-plated
3
4 kV
14.23 mOhm
IP66
3, N, PE, 2, 1
Black
1.666 kWh
9 mm
35 mm
Device connection cable
Free conductor end
Plug
100 °C
Ultrasonic compressed wire ends
70 °C
Cca
s1
d1
a1
9005
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3287518 Wieland Electric 96.453.20C4.1 Cable Black 2 m
Description
RST® CLASSIC connection cable
Free cable end - connector
Number of pins: 5
Rated voltage 250 V / 400 V
Rated current 20 A
Cable type H05Z1Z1-F
Fire class CCca s1 d1
Total length 2 m
Conductor nominal cross-section 2.5 mm²
Coding color / contact insert black
This text is machine translated.
Free cable end - connector
Number of pins: 5
Rated voltage 250 V / 400 V
Rated current 20 A
Cable type H05Z1Z1-F
Fire class CCca s1 d1
Total length 2 m
Conductor nominal cross-section 2.5 mm²
Coding color / contact insert black
This text is machine translated.
