Buy Wieland Electric 96.453.4034.1 Cable Black 4 mm

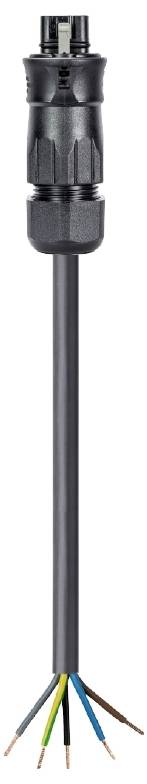

Black cable plug with stripped wires in various colours at the lower end. Suitable for electrical installations.

Available soon

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 45.37 / piece)

€ 45.37

plus VAT.

Report legal concerns

Technical specifications

Product type: Cable

Cable length: 4 mm

Type A: Open cable ends

Type B: Plug

Factory colour: Black

Connection: Cable with open ends

Rated voltage: 250 V

Test current: 20 A

Cable Ø (max.): 13.9 mm

Cable Ø up to: 13.1 mm

Cable Ø range: 13.1 - 13.9 mm

Number of pins: 5

: IP66

System: gesis® CLASSIC

Max. ambient temperature: 60 °C

: FALSE

: 2.5 mm²

: H07RN-F

: Black

: Integrated in plug-in connector

: 20 A

: 250 V

: 4000 m

: 5

: Polyamide (PA)

: Black

: 13.1-13.9 mm

: Silver-plated

: 3

: TRUE

: 4 kV

: 27.91 mΩ

: CuZn

: IP66

: 3, N, PE, 2, 1

: Black

: 4681

: 9 mm

: 35

: Device connection cable

: Plug

: Free conductor end

: 100 °C

: Ultrasonic compressed wire ends

: 60 °C

: Eca

: None

: None

: None

: 9005

UKCA: not relevant

Description

RST® CLASSIC connection cable
Free cable end - connector
Number of pins: 5
Rated voltage 250 V / 400 V
Rated current 20 A
Cable type H07RN-F
Fire class ECA
Total length 4 m
Conductor nominal cross-section 2.5 mm²
Coding color / contact insert black

This text is machine translated.
