Wieland Electric 96.453.6053.1 Cable Black
EAN:
Part number:
Item no:
Sales and shipping:
Number
Total (€ 63.86 / piece)
€
Technical specifications
- Product type
Cable
- Type A
Socket
- Type B
Open cable ends
- Factory colour
Black
- Rated voltage
250 V
- Test current
20 A
- Cable Ø (max.)
14.3 mm
- Cable Ø up to
13.3 mm
- Cable Ø range
13.3 - 14.3 mm
- Number of pins
5
IP66
TRUE
2.5 mm²
H07RN-F
Black
Integrated in plug-in connector
20 A
250 V
6000 mm
5
Black
13.3-14.3 mm
Silver-plated
3
4 kV
41.59 mOhm
IP66
3, N, PE, 2, 1
Black
7.146 kWh
9 mm
35 mm
Device connection cable
Bus
Free conductor end
Ultrasonic compressed wire ends
None
None
None
None
9005
Description

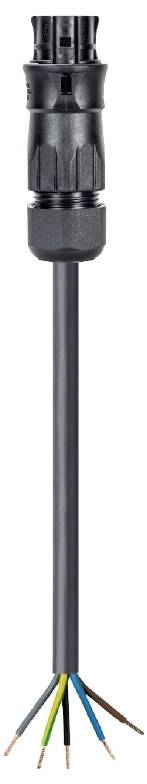

RST® CLASSIC connection cable
Socket - free cable end
Number of pins: 5
Rated voltage 250 V / 400 V
Rated current 20 A
Conductor type H07RN-F - Enhanced Version
Total length 6 m
Conductor nominal cross-section 2.5 mm²
Coding color / contact insert black
This text is machine translated.
Socket - free cable end
Number of pins: 5
Rated voltage 250 V / 400 V
Rated current 20 A
Conductor type H07RN-F - Enhanced Version
Total length 6 m
Conductor nominal cross-section 2.5 mm²
Coding color / contact insert black
This text is machine translated.
