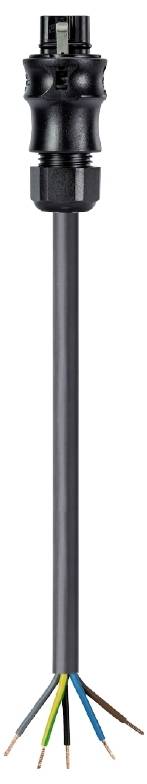

Wieland Electric 96.453.70D4.1 Cable Black 7 m
EAN:
Part number:
Item no:
Number
Total (€ 62.18 / piece)
€ 62.18
plus VAT.
Technical specifications
- Product type
Cable
- Cable length
7 m
- Type A
Open cable ends
- Type B
Plug
- Factory colour
Black
- Rated voltage
400 V
- Test current
20 A
- Cable Ø (max.)
12.4 mm
- Cable Ø up to
11.8 mm
- Cable Ø range
11.8 - 12.4 mm
- Number of pins
5
IP66
TRUE
2.5 mm²
H05Z1Z1-F
Black
Integrated in plug-in connector
20 A
400 V
7000 mm
5
Black
11.8-12.4 mm
Silver-plated
3
4 kV
48.43 mOhm
IP66
3, N, PE, 2, 1
Black
9 mm
35 mm
Device connection cable
Free conductor end
Plug
100 °C
Ultrasonic compressed wire ends
70 °C
Dca
s1
d2
a1
9005
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3287717 Wieland Electric 96.453.70D4.1 Cable Black 7 m
Description
RST® CLASSIC connection cable
Free cable end - connector
Number of pins: 5
Rated voltage 400 V / 250 V
Rated current 20 A
Cable type H05Z1Z1-F
Fire class DCA s1 d2 a1
Total length 7 m
Conductor nominal cross-section 2.5 mm²
Coding color / contact insert black
This text is machine translated.
Free cable end - connector
Number of pins: 5
Rated voltage 400 V / 250 V
Rated current 20 A
Cable type H05Z1Z1-F
Fire class DCA s1 d2 a1
Total length 7 m
Conductor nominal cross-section 2.5 mm²
Coding color / contact insert black
This text is machine translated.
