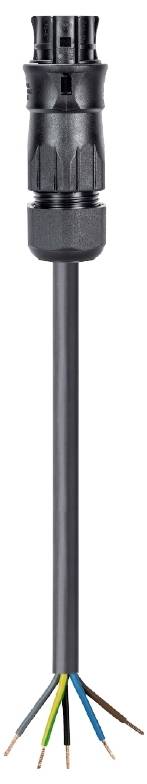

Wieland Electric 96.453.80B3.1 Cable Black 8 m
EAN:
Part number:
Item no:
Number
Total (€ 80.66 / piece)
€ 80.66
plus VAT.
Technical specifications
- Product type
Cable
- Cable length
8 m
- Type A
Socket
- Type B
Open cable ends
- Factory colour
Black
- Connection
Cable with open ends
- Rated voltage
250 V
- Test current
20 A
- Cable Ø (max.)
12.4 mm
- Cable Ø up to
11.8 mm
- Cable Ø range
11.8 - 12.4 mm
- Number of pins
5
IP66
- System
gesis® CLASSIC
TRUE
2.5 mm²
H05Z1Z1-F
Black
Integrated in plug-in connector
20 A
250 V
8000 mm
5
Black
11.8-12.4 mm
Silver-plated
3
4 kV
55.27 mOhm
IP66
3, N, PE, 2, 1
Black
5.811 kWh
9 mm
35 mm
Device connection cable
Bus
Free conductor end
Ultrasonic compressed wire ends
B2ca
s1
d1
a1
9005
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3287933 Wieland Electric 96.453.80B3.1 Cable Black 8 m
Description
RST® CLASSIC connection cable
Socket - free cable end
Number of pins: 5
Rated voltage 250 V / 400 V
Rated current 20 A
Cable type H05Z1Z1-F
Fire class B2ca s1 d1
Total length 8 m
Conductor nominal cross-section 2.5 mm²
Coding color / contact insert black
This text is machine translated.
Socket - free cable end
Number of pins: 5
Rated voltage 250 V / 400 V
Rated current 20 A
Cable type H05Z1Z1-F
Fire class B2ca s1 d1
Total length 8 m
Conductor nominal cross-section 2.5 mm²
Coding color / contact insert black
