Wieland Electric 96.453.9934.1 Cable Black 9900 mm
EAN:
Part number:
Item no:
Number
Total (€ 80.66 / piece)
€ 80.66
plus VAT.
14-day return policy included
Technical specifications
- Product type
Cable
- Cable length
9900 mm
- Type A
Open cable ends
- Type B
Plug
- Factory colour
Black
- Connection
Cable with open ends
- Rated voltage
250 V
- Test current
20 A
- Cable Ø (max.)
13.9 mm
- Cable Ø up to
13.1 mm
- Cable Ø range
13.1 - 13.9 mm
- Number of pins
5
IP66
FALSE
2.5 mm²
H07RN-F
Black
Integrated in plug-in connector
20 A
250 V
10000 m
5
Polyamide (PA)
Black
13.1-13.9 mm
Silver-plated
3
TRUE
4 kV
68.27 mΩ
CuZn
IP66
3, N, PE, 2, 1
Black
11053
9 mm
35
Device connection cable
Plug
Free conductor end
100 °C
Ultrasonic compressed wire ends
60 °C
Eca
None
None
None
9005
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3287682 Wieland Electric 96.453.9934.1 Cable Black 9900 mm
Description

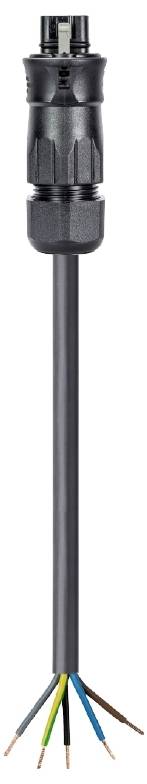

RST® CLASSIC connection cable
Free cable end - connector
Number of pins: 5
Rated voltage 250 V / 400 V
Rated current 20 A
Cable type H07RN-F
Fire class ECA
Total length 9.9 m
Conductor nominal cross-section 2.5 mm²
Coding color / contact insert black
This text is machine translated.
Free cable end - connector
Number of pins: 5
Rated voltage 250 V / 400 V
Rated current 20 A
Cable type H07RN-F
Fire class ECA
Total length 9.9 m
Conductor nominal cross-section 2.5 mm²
Coding color / contact insert black
This text is machine translated.
