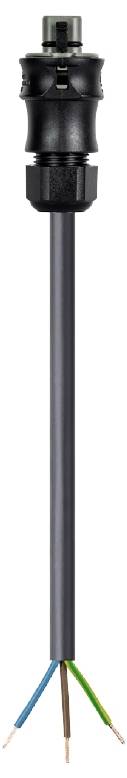

Wieland Electric 96.834.4004.3 Cable Black 4 m
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 31.92
3
4% = € 1.25
€ 30.67
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 31.92 / piece)
€ 31.92
plus VAT.
Technical specifications
- Product type
Cable
- Cable length
4 m
- Type A
Open cable ends
- Type B
Plug
- Factory colour
Black
- Rated voltage
250 V
- Test current
25 A
- Cable Ø (max.)
11.4 mm
- Cable Ø up to
11 mm
- Cable Ø range
11 - 11.4 mm
- Number of pins
3
IP66
FALSE
4 mm²
H05VV-F
Black
Integrated in plug-in connector
25 A
250 V
4000 m
3
Polyamide (PA)
Black
11-11.4 mm
Silver-plated
3
TRUE
4 kV
17.65 mΩ
CuZn
IP66
L, N, PE
Grey
3.15
9 mm
35
Device connection cable
Plug
Free conductor end
100 °C
Ultrasonic compressed wire ends
70 °C
Eca
None
None
None
7023
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3287781 Wieland Electric 96.834.4004.3 Cable Black 4 m
Description
RST® CLASSIC connection cable
Free cable end - connector
Number of poles: 3
Rated voltage: 250 V
Rated current 25 A
Cable type H05VV-F
Fire class ECA
Total length 4 m
Conductor nominal cross-section 4 mm²
Coding color / contact insert concrete gray
This text is machine translated.
Free cable end - connector
Number of poles: 3
Rated voltage: 250 V
Rated current 25 A
Cable type H05VV-F
Fire class ECA
Total length 4 m
Conductor nominal cross-section 4 mm²
Coding color / contact insert concrete gray
This text is machine translated.
