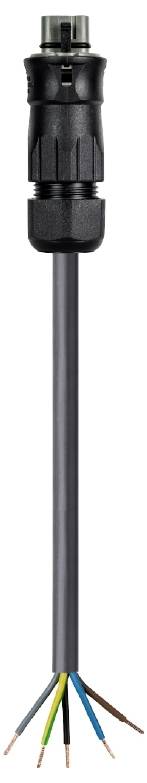

Wieland Electric 96.854.1034.3 Cable Black 1 m
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 26.88
3
4% = € 1.05
€ 25.83
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 26.88 / piece)
€ 26.88
plus VAT.
14-day return policy included
Technical specifications
- Product type
Cable
- Cable length
1 m
- Type A
Open cable ends
- Type B
Plug
- Factory colour
Black
- Connection
Cable with open ends
- Rated voltage
250 V
- Test current
25 A
- Cable standard
H07RN-F 5G 4 mm²
- Cable Ø (max.)
18 mm
- Cable Ø up to
16 mm
- Cable Ø range
16 - 18 mm
- Number of pins
5
IP66
FALSE
4 mm²
H07RN-F
Black
Integrated in plug-in connector
25 A
400 V
1000 m
5
Polyamide (PA)
Black
16-18 mm
Silver-plated
3
TRUE
4 kV
4.83 mΩ
CuZn
IP66
L, N, PE, 1, 2
Grey
9 mm
35
Device connection cable
Plug
Free conductor end
100 °C
Ultrasonic compressed wire ends
60 °C
Eca
None
None
None
7023
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3287852 Wieland Electric 96.854.1034.3 Cable Black 1 m
Description
RST® CLASSIC connection cable
Free cable end - connector
Number of pins: 5
Rated voltage 250 V / 400 V
Rated current 25 A
Cable type H07RN-F
Total length 1 m
Conductor nominal cross-section 4 mm²
Coding color / contact insert concrete gray
This text is machine translated.
Free cable end - connector
Number of pins: 5
Rated voltage 250 V / 400 V
Rated current 25 A
Cable type H07RN-F
Total length 1 m
Conductor nominal cross-section 4 mm²
Coding color / contact insert concrete gray
This text is machine translated.
