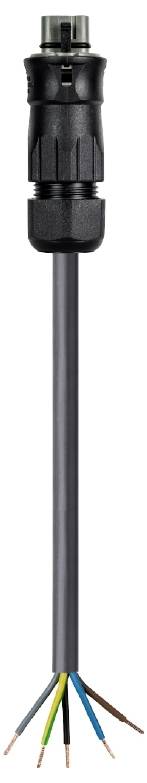

Wieland Electric 96.854.2004.3 Cable Black 2 m
EAN:
Part number:
Item no:
Number
Total (€ 33.61 / piece)
€ 33.61
plus VAT.
Technical specifications
- Product type
Cable
- Cable length
2 m
- Type A
Open cable ends
- Type B
Plug
- Factory colour
Black
- Rated voltage
250 V
- Test current
25 A
- Cable Ø (max.)
14.7 mm
- Cable Ø up to
13.9 mm
- Cable Ø range
13.9 - 14.7 mm
- Number of pins
5
IP66
FALSE
4 mm²
H05VV-F
Black
Integrated in plug-in connector
25 A
400 V
2000 m
5
Polyamide (PA)
Black
13.9-14.7 mm
Silver-plated
3
TRUE
4 kV
9.1 mOhm
CuZn
IP66
L, N, PE, 1, 2
Grey
2.39 kWh
9 mm
35
Device connection cable
Plug
Free conductor end
100 °C
Ultrasonic compressed wire ends
70 °C
Eca
None
None
None
7023
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3287871 Wieland Electric 96.854.2004.3 Cable Black 2 m
Description
RST® CLASSIC connection cable
Free cable end - connector
Number of pins: 5
Rated voltage 250 V / 400 V
Rated current 25 A
Cable type H05VV-F
Fire class ECA
Total length 2 m
Conductor nominal cross-section 4 mm²
Coding color / contact insert concrete gray
This text is machine translated.
Free cable end - connector
Number of pins: 5
Rated voltage 250 V / 400 V
Rated current 25 A
Cable type H05VV-F
Fire class ECA
Total length 2 m
Conductor nominal cross-section 4 mm²
Coding color / contact insert concrete gray
This text is machine translated.
