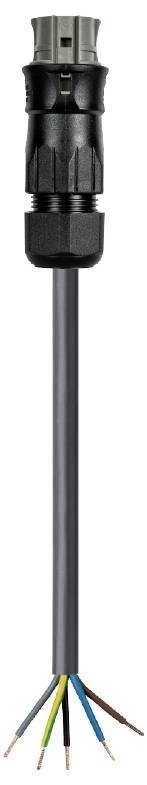

Wieland Electric 96.854.3003.3 Cable Black 3 m
EAN:
Part number:
Item no:
Number
Total (€ 37.81 / piece)
€ 37.81
plus VAT.
Technical specifications
- Product type
Cable
- Cable length
3 m
- Type A
Socket
- Type B
Open cable ends
- Factory colour
Black
- Connection
Cable with open ends
- Rated voltage
250 V
- Test current
25 A
- Cable Ø (max.)
14.7 mm
- Cable Ø up to
13.9 mm
- Cable Ø range
13.9 - 14.7 mm
- Number of pins
5
IP66
FALSE
4 mm²
H05VV-F
Black
Integrated in plug-in connector
25 A
400 V
3000 m
5
Polyamide (PA)
Black
13.9-14.7 mm
Silver-plated
3
TRUE
4 kV
13.38 mOhm
CuZn
IP66
L, N, PE, 1, 2
Grey
3.409 kWh
9 mm
35
Device connection cable
Bus
Free conductor end
100 °C
Ultrasonic compressed wire ends
70 °C
Eca
None
None
None
7023
- UKCA
not relevant
Description
RST® CLASSIC connection cable
Socket - free cable end
Number of pins: 5
Rated voltage 250 V / 400 V
Rated current 25 A
Cable type H05VV-F
Fire class ECA
Total length 3 m
Conductor nominal cross-section 4 mm²
Coding color / contact insert concrete gray
This text is machine translated.
Socket - free cable end
Number of pins: 5
Rated voltage 250 V / 400 V
Rated current 25 A
Cable type H05VV-F
Fire class ECA
Total length 3 m
Conductor nominal cross-section 4 mm²
Coding color / contact insert concrete gray
This text is machine translated.
