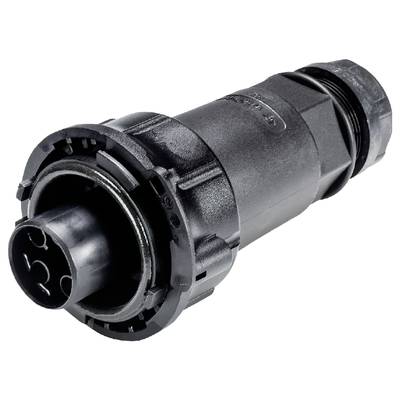

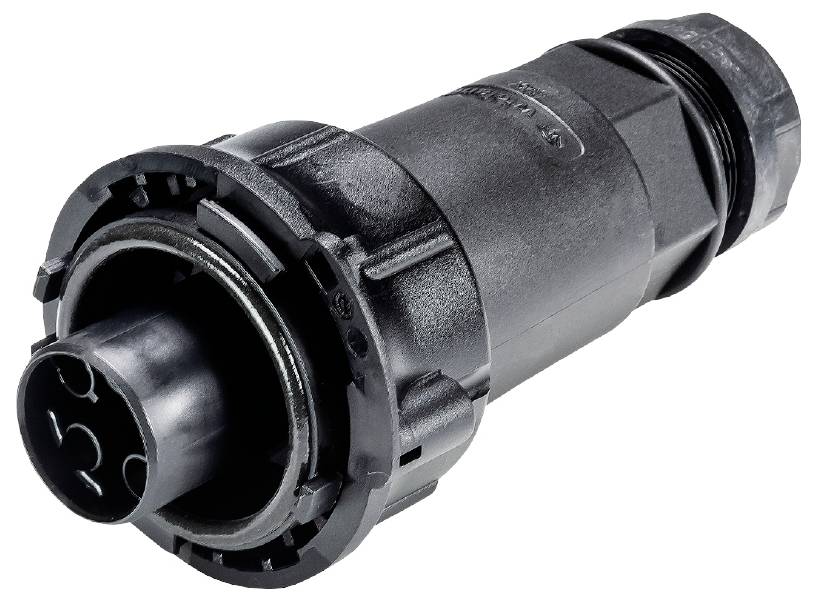

Wieland Electric 97.051.4053.1 Connector
EAN:
Part number:
Item no:
Number
Total (€ 37.81 / piece)
€ 37.81
plus VAT.
Technical specifications
- Product type
Connector
- Type A
Socket
- Connector version
straight
- Connection
Screw connection
- Rated voltage
250 V
- Test current
50 A
- Cable Ø (max.)
25 mm
- Cable Ø up to
15 mm
- Cable Ø range
15 - 25 mm
- Number of pins
5
65 mm
Bus
TRUE
65 mm
Screw connection
Integrated in plug-in connector
50 A
250 V
TRUE
5
145 mm
Polyamide (PA)
15-25 mm
Silver-plated
3
4 kV
0.4 mOhm
CuZn
Other
1
3, N, PE, 2, 1
Black
0.409 kWh
4-16 mm²
4-6 mm²
80 °C
9005
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3288074 Wieland Electric 97.051.4053.1 Connector
Description
RST® Power connector
straight
Number of pins: 5
Socket
Connection type: screw terminals.
Rated voltage 250 V / 400 V
Rated current 50 A
Cable diameter 15 - 25 mm
Coding color / contact insert black
This text is machine translated.
straight
Number of pins: 5
Socket
Connection type: screw terminals.
Rated voltage 250 V / 400 V
Rated current 50 A
Cable diameter 15 - 25 mm
Coding color / contact insert black
This text is machine translated.
