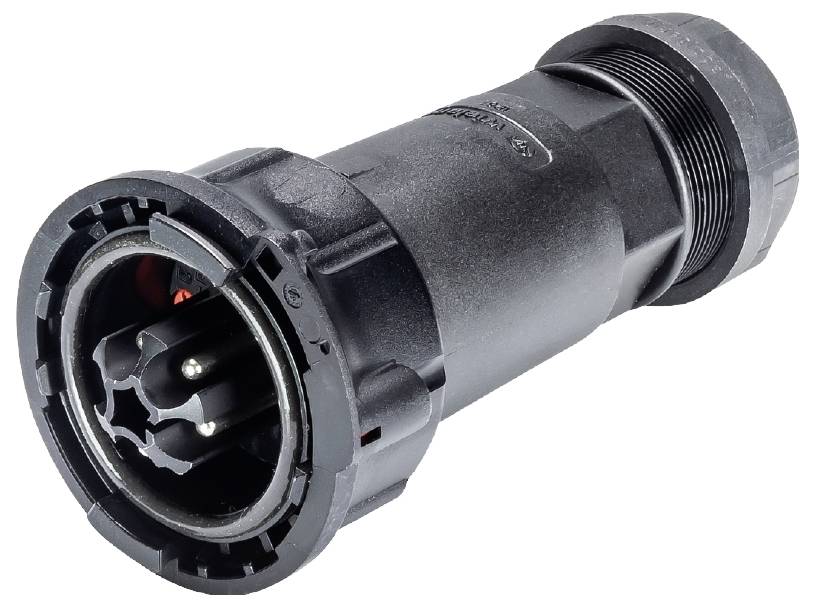

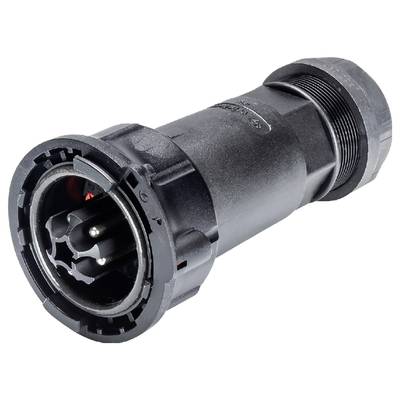

Wieland Electric 97.052.4253.1 Connector
EAN:
Part number:
Item no:
Number
Total (€ 37.81 / piece)
€ 37.81
plus VAT.
Technical specifications
- Product type
Connector
- Type A
Plug
- Connector version
straight
- Connection
Screw connection
- Rated voltage
250 V
- Test current
50 A
- Cable Ø (max.)
32 mm
- Cable Ø up to
20 mm
- Cable Ø range
20 - 32 mm
- Number of pins
5
65 mm
Plug
TRUE
65 mm
Screw connection
Integrated in plug-in connector
50 A
250 V
TRUE
5
140 mm
Polyamide (PA)
20-32 mm
Silver-plated
3
4 kV
0.4 mOhm
CuZn
Other
1
3, N, PE, 2, 1
Black
0.379 kWh
4-16 mm²
4-6 mm²
80 °C
9005
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3287715 Wieland Electric 97.052.4253.1 Connector
Description
RST® Power connector
straight
Number of pins: 5
Connector
Connection type: screw terminals.
Rated voltage 250 V / 400 V
Rated current 50 A
Cable diameter 20 - 32 mm
Coding color / contact insert black
This text is machine translated.
straight
Number of pins: 5
Connector
Connection type: screw terminals.
Rated voltage 250 V / 400 V
Rated current 50 A
Cable diameter 20 - 32 mm
Coding color / contact insert black
This text is machine translated.
