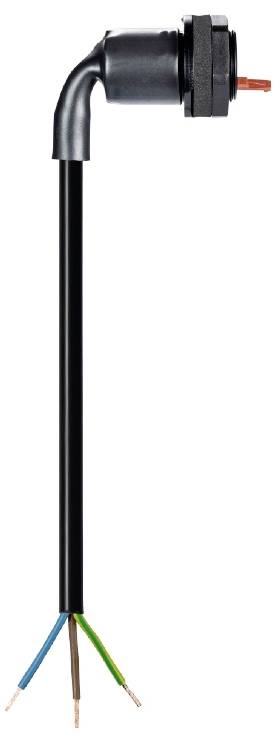

Wieland Electric 99.533.0000.7 Cable Black 9 m
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 24.36
3
4% = € 0.95
€ 23.41
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 24.36 / piece)
€ 24.36
plus VAT.
Technical specifications
- Product type
Cable
- Cable length
9 m
- Type A
Socket
- Type B
Open cable ends
- Factory colour
Black
- Connection
Cable with open ends
- Rated voltage
250 V
- Test current
16 A
- Cable Ø (max.)
7.8 mm
- Cable Ø up to
8.2 mm
- Cable Ø range
8.2 - 7.8 mm
- Number of pins
3
IP66
FALSE
1.5 mm²
H05VV-F
Black
Integrated in plug-in connector
16 A
250 V
9000 mm
3
Black
Silver-plated
3
4 kV
104.2 mOhm
IP66
L, N, PE
Black
3.541 kWh
9 mm
300 mm
Device connection cable
Bus
Free conductor end
100 °C
Ultrasonic compressed wire ends
Eca
None
None
None
9005
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3287864 Wieland Electric 99.533.0000.7 Cable Black 9 m
Description
RST® CLASSIC connection cable
Socket - free cable end
Number of poles: 3
Rated voltage: 250 V
Rated current 16 A
Cable type H05VV-F
Fire class ECA
Total length 9 m
Conductor nominal cross-section 1.5 mm²
Coding color / contact insert black
This text is machine translated.
Socket - free cable end
Number of poles: 3
Rated voltage: 250 V
Rated current 16 A
Cable type H05VV-F
Fire class ECA
Total length 9 m
Conductor nominal cross-section 1.5 mm²
Coding color / contact insert black
This text is machine translated.
