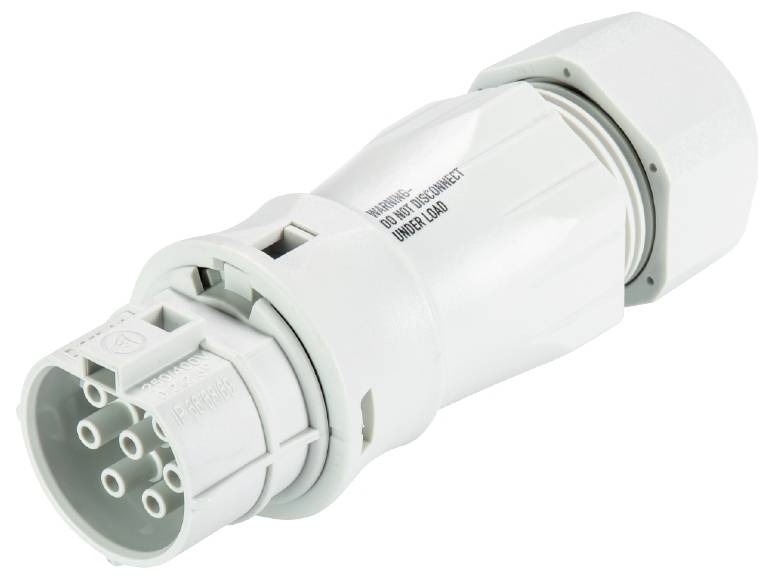

Wieland Electric 9L.171.0853.0 Connector
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 13.44
3
5% = € 0.67
€ 12.77
5
7% = € 0.94
€ 12.50
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 13.44 / piece)
€ 13.44
plus VAT.
Technical specifications
- Product type
Connector
- Type A
Socket
- Type B
Socket
- Connector version
straight
- Connection
Crimp
- Rated voltage
250 V
- Test current
20 A
- Cable Ø (max.)
13 mm
- Cable Ø up to
8 mm
- Cable Ø range
8 - 13 mm
- Number of pins
7
IP66
- System
gesis® CLASSIC
35.4 mm
Bus
TRUE
35.4 mm
Crimp
Integrated in plug-in connector
20 A
250 V
TRUE
7
102 mm
Polyamide (PA)
8-13 mm
Silver-plated
3
4 kV
0.65 mOhm
CuZn
IP66
1
Grey
0.75-2.5 mm²
100 °C
7035
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3289318 Wieland Electric 9L.171.0853.0 Connector
Description
RST® CLASSIC connectors
straight
Number of poles 7
Socket
Connection type crimp
Rated voltage 250 V / 400 V
Rated current 20 A
Cable diameter 8 - 13 mm
Contact seal yes
Coding color / contact insert light GRAY
This text is machine translated.
straight
Number of poles 7
Socket
Connection type crimp
Rated voltage 250 V / 400 V
Rated current 20 A
Cable diameter 8 - 13 mm
Contact seal yes
Coding color / contact insert light GRAY
