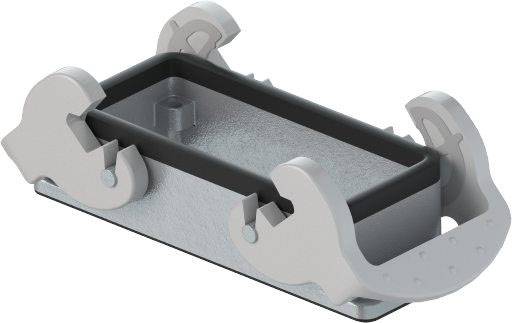

Wieland Electric Enclosure bottom Content: 1 pc(s)
EAN:
Part number:
Item no:
Product type
Enclosure bottom
Case material
Aluminium
Type
Wieland
Series
BAS
Manufacturer part #
70.320.1628.0
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 19.32
3
5% = € 0.96
€ 18.36
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 19.32 / piece)
€ 19.32
plus VAT.
14-day return policy included
Highlights & Details
Wieland Electric Enclosure bottom Content: 1 pc(s)
Our service for you
Technical specifications
- +PE
- Type
Wieland
- Product type
Enclosure bottom
- Series
BAS
- Manufacturer part #
70.320.1628.0
- Features
+ two-hand locking mechanism
- Case material
Aluminium
- Factory colour
Grey
- Content
1 pc(s)
- Max. temperature
+120 °C
- Min. temperature
-40 °C
- Leading contact (PE)
No
- Type
Housing base
- Pins
-
- Connection
-
- Voltage
400 V AC
44
TRUE
28 mm
FALSE
Grey
Double locking levers
FALSE
TRUE
Aluminium
Powder coating
-40-120 °C
Other
Housing extension
IP54
Bottom
Base unit
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 744190 Wieland Electric Enclosure bottom Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 744190 Wieland Electric Enclosure bottom Content: 1 pc(s)
Description
These connectos are specially designed for use in particularly rough working conditions. Intended mainly for machine and plant engineering applications, MSR technology, stage/lighting systems and the automotive industry. The connector is made with an aluminium housing and a contact insert (male or female).
Scope of delivery
- The housing is supplied without the contact inserts.
Hints
The contact inserts can be screwed into the top/bottom part of the housing as desired. When connected, the 6 / 10 / 16 / 24 pin versions meet protection class IP 55; the 3-pin version meets protection class IP 54.
