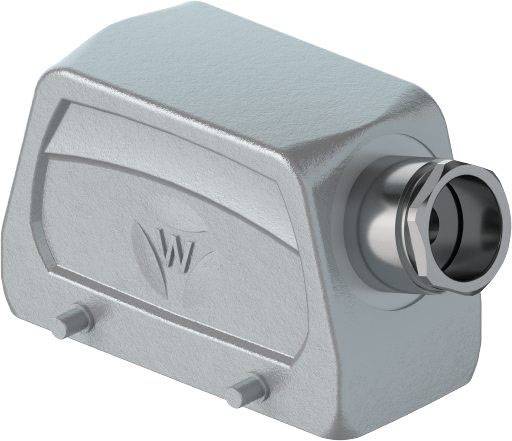

Wieland Electric Enclosure top Content: 1 pc(s)
EAN:
Part number:
Item no:
Product type
Enclosure top
Case material
Aluminium
Thread size
M32
Type
70.353.1635.0
Series
BAS
Datasheet (PDF)
Number
Total (€ 42.01 / piece)
€ 42.01
plus VAT.
Only 4 Piece(s) available
Technical specifications
- +PE
- Type
70.353.1635.0
- Product type
Enclosure top
- Series
BAS
- Manufacturer part #
70.353.1635.0
- Features
+ cable gland
Cable input (lateral)
+ two-hand locking mechanism
Transverse brace
- Case material
Aluminium
- Factory colour
Grey
- Thread size
M32
- Terminal Ø (max.)
26.5 mm
- Clamp Ø
15 mm
IP54
- Content
1 pc(s)
- Max. temperature
+120 °C
- Min. temperature
-40 °C
- Leading contact (PE)
No
- Type
Housing top section
- Pins
-
- Connection
-
- Voltage
400 V AC
56
TRUE
60 mm
FALSE
Grey
Double locking levers
TRUE
TRUE
Aluminium
Powder coating
-40-120 °C
Other
Plug case
IP54
Sideways
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 742632 Wieland Electric Enclosure top Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 742632 Wieland Electric Enclosure top Content: 1 pc(s)
Description
These connectos are specially designed for use in particularly rough working conditions. Intended mainly for machine and plant engineering applications, MSR technology, stage/lighting systems and the automotive industry. The connector is made with an aluminium housing and a contact insert (male or female).
Scope of delivery
- The housing is supplied without the contact inserts.
Hints
The contact inserts can be screwed into the top/bottom part of the housing as desired. When connected, the 6 / 10 / 16 / 24 pin versions meet protection class IP 55; the 3-pin version meets protection class IP 54.
