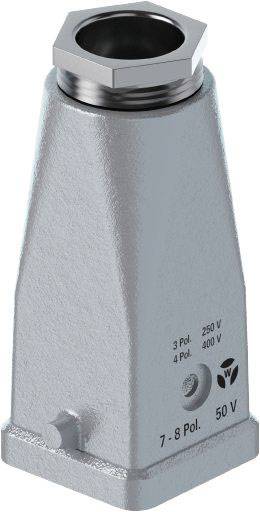

Wieland Electric Enclosure top Content: 1 pc(s)
EAN:
Part number:
Item no:
Product type
Enclosure top
Case material
Diecast zinc
Thread size
M20
Type
76.352.0736.0
Series
MIN
Datasheet (PDF)
Total (€ 4.61 / piece)
€ 4.61
plus VAT.
14-day return policy included
Technical specifications
- Type
76.352.0736.0
- Product type
Enclosure top
- Series
MIN
- Manufacturer part #
76.352.0736.0
- Features
+ cable gland
Cable input (straight)
Longitudinal brace
- Case material
Diecast zinc
- Factory colour
Grey
- Thread size
M20
- Terminal Ø (max.)
14.5 mm
- Clamp Ø
3 mm
IP54
- Mating cycles
500
- Content
1 pc(s)
- Max. temperature
+120 °C
- Min. temperature
-40 °C
- Leading contact (PE)
No
- Type
Housing top section
- Pins
-
- Connection
-
- Voltage
V, AC. V AC
Documents & Downloads
Datasheet
Datasheet 742659 Wieland Electric Enclosure top Content: 1 pc(s)
Description
These connectos are specially designed for use in particularly rough working conditions. Intended mainly for machine and plant engineering applications, MSR technology, stage/lighting systems and the automotive industry.
The connector is made with an aluminium housing and a contact insert (male or female).
The connector is made with an aluminium housing and a contact insert (male or female).
Scope of delivery
- The housing is supplied without the contact inserts.
Hints
The contact inserts can be screwed into the top/bottom part of the housing as desired. When connected, the 6 / 10 / 16 / 24 pin versions meet protection class IP 55; the 3-pin version meets protection class IP 54.
