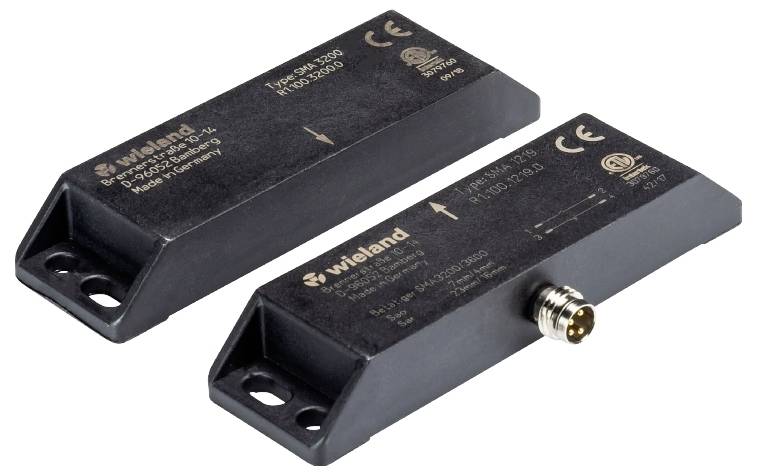

Wieland Electric Magnetic switch Magnetic SMA 0219 R1.100.0219.0 (L x W x H) 88 x 25 x 14 mm
EAN:
Part number:
Item no:
Product type
Magnetic switch
Model
Magnetic
Connector
M8
Length
88 mm
Height
14 mm
Number
Total (€ 77.30 / piece)
€ 77.30
plus VAT.
Technical specifications
- Product type
Magnetic switch
- Type
SMA 0219
- Enclosure material
Plastic
- Model
Magnetic
- Connector
M8
IP67
- Length
88 mm
- Width
25 mm
- Height
14 mm
- Dim
(L x W x H) 88 x 25 x 14 mm
- Content
1 pc(s)
- Technology
Magnetic
- Switching current (max.)
200 mA
DC
Plastic
TRUE
Uncoated
3 mm
0
0
0
2
Other
Connector M8
Other
Cuboid
17 mm
7 mm
200 mA
5 mA
FALSE
TRUE
IP67
Magnet
5-48 V
25 mm
14 mm
88 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3272528 Wieland Electric Magnetic switch Magnetic SMA 0219 R1.100.0219.0 (L x W x H) 88 x 25 x 14 mm
Description
Safety sensor and magnet
tamper-proof
Rectangular design
Dimensions lxwxh: 88x25x14mm
Contact configuration: Opener/closer
Protection class IP67
M8 connection
This text is machine translated.
tamper-proof
Rectangular design
Dimensions lxwxh: 88x25x14mm
Contact configuration: Opener/closer
Protection class IP67
M8 connection
This text is machine translated.
