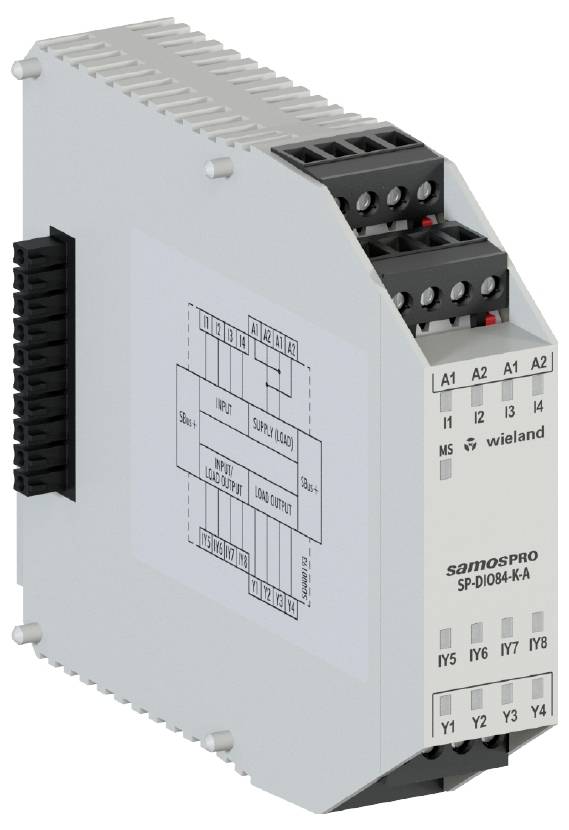

Wieland Electric R1.190.1050.0 SP-DIO84-K-A DC 24V IO module Screw terminal No. of digital outputs: 4 No. of digital inp
EAN:
Part number:
Item no:
Product type
IO module
Interfaces
Screw terminal
Type
SP-DIO84-K-A DC 24V
Operating voltage
24 V
Operating voltage
16.8 - 30 V
Number
Total (€ 234.45 / piece)
€ 234.45
plus VAT.
14-day return policy included
Technical specifications
- Product type
IO module
- Interfaces
Screw terminal
- Type
SP-DIO84-K-A DC 24V
- Operating voltage
24 V
- Operating voltage
16.8 - 30 V
- Height
96.5 mm
- Length
121 mm
- Width
22.5 mm
- No. of digital inputs
4
- No. of digital outputs
4
- Dim
(L x W x H) 121 x 22.5 x 96.5 mm
- Manufacturer part #
R1.190.1050.0
- Depth
121 mm
- Connector
Screw terminals
- Weight
0.1500 kg
22.5
96.5 mm
121 mm
FALSE
DC
DC
Transistor
Screw connection
None
None
FALSE
FALSE
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3272626 Wieland Electric R1.190.1050.0 SP-DIO84-K-A DC 24V IO module Screw terminal No. of digital outputs: 4 No. of digital inp
Description
SAMSPRO expansion module
4 non-safe inputs
4 non-safe outputs
4 configurable
Non-secure I/O.
Pluggable Screw terminals
This text is machine translated.
4 non-safe inputs
4 non-safe outputs
4 configurable
Non-secure I/O.
Pluggable Screw terminals
This text is machine translated.
