Wieland Electric Relay component 80.020.4100.0 Switching voltage (max.): 53 V DC 10 pc(s)
EAN:
Part number:
Item no:
Product type
Relay component
Switching voltage (max.)
53 V DC
Output voltage (max.)
53 V DC
Type
FLARE-24VDC/48VDC-0,5A
Switching voltage (min.)
4.4 V DC
Number (Package size 10 pc(s))
Total (€ 50.00 / piece)
€ 500.00
plus VAT.
Technical specifications
- Product type
Relay component
- Type
FLARE-24VDC/48VDC-0,5A
- Switching voltage (min.)
4.4 V DC
- Switching voltage (max.)
53 V DC
- Output voltage (min.)
4.4 V DC
- Output voltage (max.)
53 V DC
- Max. output current
0.5 A
- Width
6.2 mm
- Height
89 mm
- Content
10 pc(s)
- Nominal control voltage
24 V DC
6.2 mm
89 mm
FALSE
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3275004 Wieland Electric Relay component 80.020.4100.0 Switching voltage (max.): 53 V DC 10 pc(s)
Description
flare

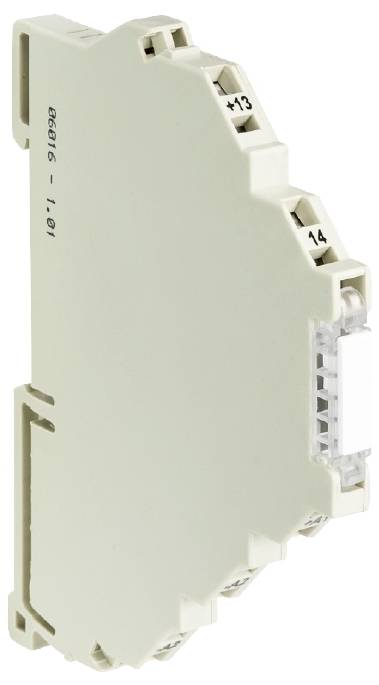

Terminal semiconductor relay with 6.2 mm installation width
Input
Transistor module
Connection with spring clamp
Input: 24 V/DC
OUTPUT 4.4 - 53 V DC/0.5 A.
With jumper plug at input/output
TYPE FLARE-24VDC/48VDC-0.5A
This text is machine translated.
Terminal semiconductor relay with 6.2 mm installation width
Input
Transistor module
Connection with spring clamp
Input: 24 V/DC
OUTPUT 4.4 - 53 V DC/0.5 A.
With jumper plug at input/output
TYPE FLARE-24VDC/48VDC-0.5A
This text is machine translated.
