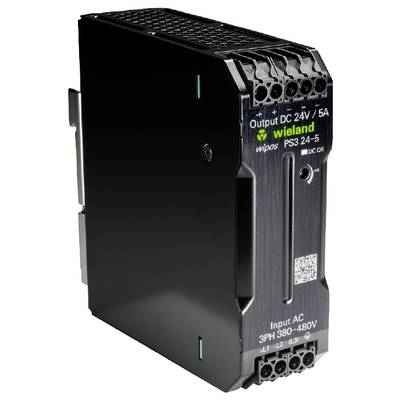

Wieland Electric 81.000.6560.0 SMPSU 24 V 5 A 120 W Content 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 348.74 / piece)
€ 348.74
plus VAT.
Technical specifications
- Product type
SMPSU
- Min. input voltage
320 V AC
450 V DC
- Input voltage (max.)
576 V AC
810 V DC
- Max. output current
5 A
- Output current (max.) - rounded
5 A
120 W
- Output voltage (nominal)
24 V
- Dim
(W x H) 40 mm x 125 mm
- Manufacturer part #
81.000.6560.0
- Content
1 pc(s)
- Width
40 mm
- Height
125 mm
IP20
- Type
WIPOS PS3 24-5
40
125 mm
122.2 mm
FALSE
AC/DC
120 W
TRUE
TRUE
FALSE
IP20
24-24 V
320-576 V
450-810 V
5 A
Description
Wipos PS3 switch P/s
Output:24 V DC / 5 a (adjustable from 22.5-29.5 V DC)
protected against permanent short circuits
INPUT 320-576 V AC 450-810 V DC
three phases
W x H x D 40 × 125 × 122.2 mm
This text is machine translated.
Output:24 V DC / 5 a (adjustable from 22.5-29.5 V DC)
protected against permanent short circuits
INPUT 320-576 V AC 450-810 V DC
three phases
W x H x D 40 × 125 × 122.2 mm
This text is machine translated.
