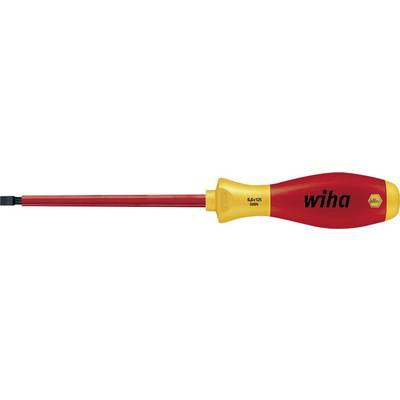

Wiha 00832 VDE Slotted screwdriver Blade width: 10 mm Blade length: 200 mm DIN ISO 2380, DIN EN 60900
EAN:
Part number:
Item no:
Technical specifications
- Product type
Slotted screwdriver
- Range of use
VDE
- Blade width
10 mm
- Blade thickness
1.6 mm
- Blade length
200 mm
- Length
324 mm
- Handle Ø
41 mm
- Handle length
124 mm
- Blade type
Round
- Material
Chrome moly vanadium steel
- Material properties
tempered
burnished
- DIN standard
DIN ISO 2380
DIN EN 60900
- Width
32.50 mm
- Height
4.00 mm
- Dim
(L x W x H) 324 x 32.50 x 4.00 mm
- Weight
0.181 kg
- Downforce
Slot
- Screwdriver features
Multi-purpose tool grip
- EN standard
EN 60900
- Material (details)
High-quality chromium-vanadium-molybdenum steel, hardened throughout, burnished.
- Handle grip dimensions
(L x Ø) 200 x 41 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 778235 Wiha 00832 VDE Slotted screwdriver Blade width: 10 mm Blade length: 200 mm DIN ISO 2380, DIN EN 60900
Description
Individually tested protective insulation 1,000 V AC, VDE and GS tested. Blade: High quality chrome-vanadium-molybdenum steel, through hardened, black-finish. Insulation moulded directly onto blade. Handle: Ergonomic Wiha SoftFinish® multi-component handle with roll-off protection. Standards: DIN ISO 2380. Manufactured acc. to IEC 60900:2012. Application: For all work on or around electrical components up to 1,000 V AC.
Features
- Use: For working on live parts up to 1000 V AC. 000 V AC Ergonomic Wiha SoftFinish® multi-component grip with anti-rolloff protection. Blade: High quality chrome-vanadium-molybdenum steel, hardened throughout, burnished. Protective insulation sprayed directly on to the blade.
- Standards: DIN ISO 2380. Manufactured in accordance with IEC 60900:2012.
